Brand Name:	ohory electric
MOQ:	10set
Price:	Confirm price based on product
Packaging Details:	According to requirement
Payment Terms:	Advance 30% deposit and ship after receiving 70% final payment

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

FCC, ETL&CETL, CE , TÜVmark certified, CQC compliant.

Input:

230VAC±20%-50/60Hz

Single-phase Electricity:

230V 32A 7.36KW

Wire Specifications:

3*6square+1*0.5square

Line Length:

Charging Connector:

European Standard Tpye 2

Charging Interface:

Type 2 Cable 5M

Protection:

IP66

Enclosure:

Plastic PC94V0

Installation:

Wall-mount/Pole-mount

Operating Temperature:

-30℃ To +50℃

Product Dimensions:

320*230*100(L*W*H)mm/

Package Dimensions:

462*302*248(L*W*H)mm

Net Weight:

5.1Kg

Gross Weight:

6.1Kg

Communication:

WiFi&Bluetooth

Input Cable Length:

3.5m/5m/7m/7.5m

Temperature:

-30~+50℃

Humidity:

5%~95%RH

Product Weight:

<8.9KG

Leakage Protection:

Type A+DC6mA

Supply Ability:

100 set/day

Highlight:

European Standard Wall Mounted Ev Charger

IP66 Wall Mounted Ev Charger

Type 2 Wall Mounted Ev Charger

Product Description

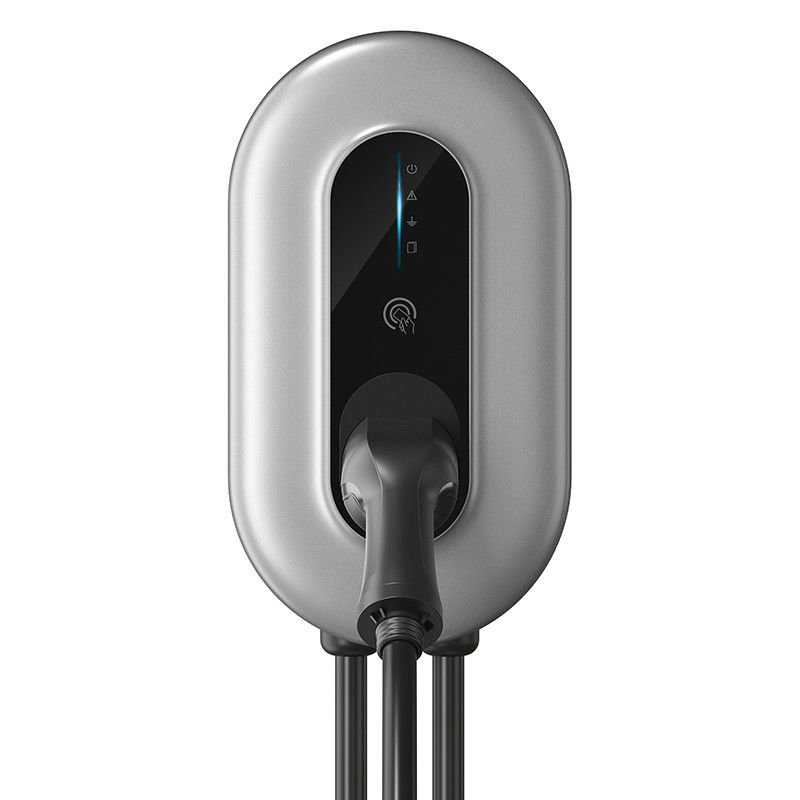

European Standard Type 2 Wall Mounted EV Charger IP66

Technical Specifications

Input	230VAC ±20% - 50/60Hz
Single-phase Electricity	230V 32A 7.36KW
Wire Specifications	36mm² + 10.5mm²
Cable Length	5 Meters
Charging Connector	European Standard Type 2
Charging Interface	Type 2 Cable 5M
Protection Rating	IP65
Enclosure Material	Plastic PC94V0
Installation	Wall-mount / Pole-mount
Operating Temperature	-30℃ to +50℃
Product Dimensions	320 × 230 × 100 mm (L × W × H)
Package Dimensions	462 × 302 × 248 mm (L × W × H)
Net Weight	5.1 kg
Gross Weight	6.1 kg

Product Images
