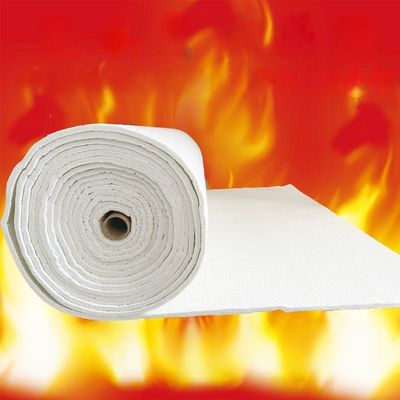

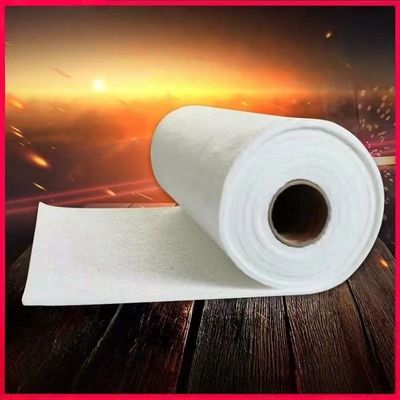

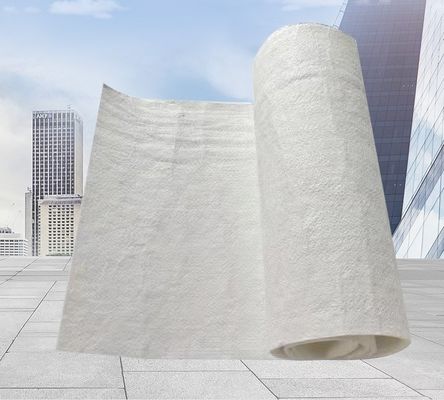

UL94 V-0 Fire Rating Aerogel Blanket 0.5-6mm Thickness Insulation 98% Hydrophobicity

Brand Name:	Ohory Electric
MOQ:	1000 Pcs
Price:	Confirm Price Based On Product
Packaging Details:	According To Requirement
Payment Terms:	TT/LC

Detail Information

Product Description

Detail Information

Certification:

ISO 9001/UL/IEC/CNAS/CMA

Thermal Conductivity:

25°C，≤0.025W/(m·K)/500°c，≤0.08W/(m·K)

Insulation Resistance:

>500MΩ(1000V，DC，60s)

Color:

White/Black

Voltage Resistance:

No Breakdown,arcing,leakage Current

Application Scenarios:

Aerospace And Defense, High Themal Insulation Protection For Power Battery Cells And Modules In Advanced New Energy Passenger Vehicles

Hydrophobicity:

>98%

Thickness:

0.5~6mm

Heat Resistant Temperature:

350°C-1300°C

Highlight:

Hydrophobic Aerogel Blanket

UL94 V-0 Aerogel Blanket

6mm Thickness Aerogel Blanket

Product Description

UL94 V-0 Fire Rating Aerogel Blanket 0.5-6mm Thickness Insulation 98% Hydrophobicity

Key Features

UL94 V-0 Fire Rating - Highest flammability resistance
Exceptional thermal conductivity: ≤0.025W/(m·K) at 25°C, ≤0.08W/(m·K) at 500°C
Superior voltage resistance: No breakdown at 3000V DC
High heat resistance: 350°C to 1300°C operating range
Excellent hydrophobicity: >98% water resistance
Available in white or black color options

Technical Specifications

Attribute	Value
Thermal Conductivity	25°C: ≤0.025W/(m·K)/500°C: ≤0.08W/(m·K)
Insulation Resistance	>500MΩ (1000V, DC, 60s)
Color	White/Black
Voltage Resistance	No breakdown, arcing, leakage current <1mA (3000V, DC, 60s)
Heat Resistant Temperature	350°C-1300°C
Thickness	0.5~6mm
Hydrophobicity	>98%

Product Description

The Aerogel Blanket is a high-performance insulation solution offering exceptional protection against extreme temperatures and electrical hazards. Engineered for superior thermal insulation and voltage resistance, this versatile product is ideal for demanding industrial and commercial applications.

Performance Characteristics

With no breakdown, arcing, or leakage current (<1mA at 3000V DC for 60s), our aerogel blanket ensures reliable performance in high-voltage environments. The UL94 V-0 fire rating provides maximum flammability resistance for enhanced safety in fire-prone settings.

Application Scenarios

Specifically designed for aerospace, defense, and advanced new energy passenger vehicles, this blanket provides high thermal insulation protection for power battery cells and modules. Its exceptional characteristics make it suitable for:

High-voltage electrical insulation
Extreme temperature environments
Applications requiring moisture resistance
Industrial processes with fire safety requirements

Manufacturing Details

Manufactured by Ohory Electric in Dongguan, China, our aerogel insulation blanket meets rigorous international standards including ISO 9001, UL, IEC, CNAS, and CMA certifications.

Ordering Information

Minimum Order Quantity: 1000 pieces
Customizable packaging options
Flexible payment terms: TT or LC
Delivery time based on order quantity

Frequently Asked Questions

What is the brand name of the Aerogel Blanket product?

The brand name is Ohory Electric.

Where is the Aerogel Blanket product manufactured?

The Aerogel Blanket is manufactured in Dongguan, China.

What certifications does the Aerogel Blanket product have?

Certified with ISO 9001/UL/IEC/CNAS/CMA.

What is the minimum order quantity?

The minimum order quantity is 1000 pieces.

What are the payment terms?

Payment terms accepted are TT (Telegraphic Transfer) and LC (Letter of Credit).
