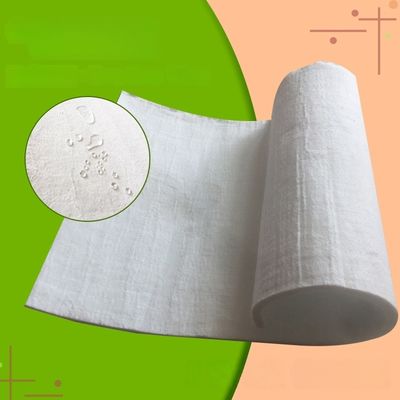

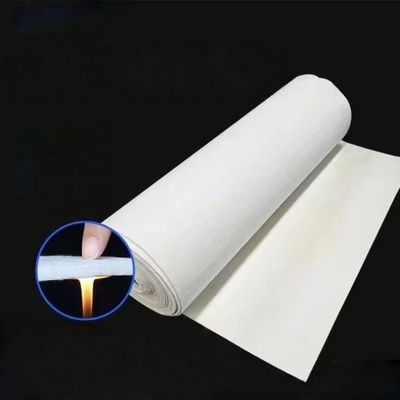

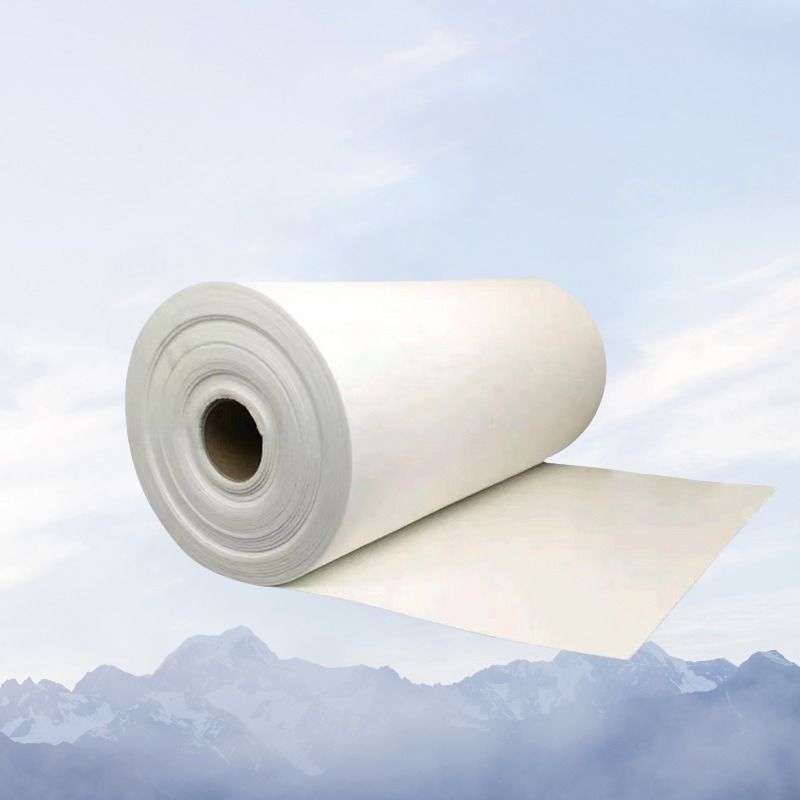

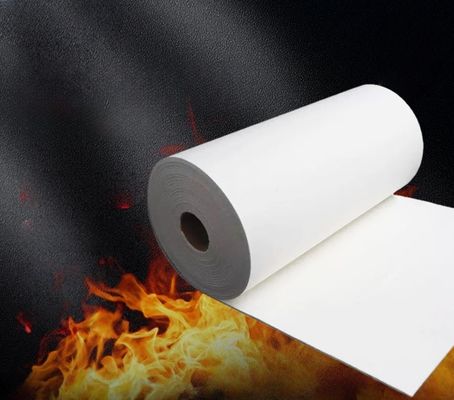

High Thermal Insulation Protection Aerogel Fabric Blanket For Advanced Energy Passenger Vehicles

Brand Name:	Ohory Electric
MOQ:	1000 Pcs
Price:	Confirm Price Based On Product
Packaging Details:	According To Requirement
Payment Terms:	TT/LC

Detail Information

Product Description

Detail Information

Certification:

ISO 9001/UL/IEC/CNAS/CMA

Color:

White/Black

Voltage Resistance:

No Breakdown,arcing,leakage Current

Heat Resistant Temperature:

350°C-1300°C

Insulation Resistance:

>500MΩ(1000V，DC，60s)

Thickness:

0.5~6mm

Thermal Conductivity:

25°C，≤0.025W/(m·K)/500°c，≤0.08W/(m·K)

Hydrophobicity:

>98%

Application Scenarios:

Aerospace And Defense, High Themal Insulation Protection For Power Battery Cells And Modules In Advanced New Energy Passenger Vehicles

Highlight:

High Thermal Insulation Blanket

0.5mm Aerogel Fabric Blanket

6mm Aerogel Fabric Blanket

Product Description

High Thermal Insulation Protection Aerogel Fabric Blanket for Advanced Energy Passenger Vehicles

Product Overview

The Aerogel Blanket is a cutting-edge thermal insulation solution offering exceptional heat resistance, hydrophobicity, and insulation performance. Designed for extreme environments ranging from 350°C to 1300°C, this innovative blanket provides superior thermal protection for demanding industrial applications.

Key Specifications

Attribute	Value
Color	White/Black
Voltage Resistance	No Breakdown, arcing, leakage Current <1mA (3000V, DC, 60s)
Heat Resistant Temperature	350°C-1300°C
Insulation Resistance	>500MΩ (1000V, DC, 60s)
Thickness	0.5~6mm
Thermal Conductivity	25°C, ≤0.025W/(m·K)/500°C, ≤0.08W/(m·K)
Hydrophobicity	>98%
Fire Rating	UL94 V-0

Technical Advantages

The Aerogel Blanket combines ceramic fiber aerogel technology with exceptional thermal properties, offering:

Superior thermal insulation in extreme temperature environments (350°C to 1300°C)
High hydrophobicity (>98%) for moisture resistance
Excellent electrical insulation properties (>500MΩ at 1000V DC)
Outstanding voltage resistance (3000V DC with no breakdown)
UL94 V-0 fire safety certification
Lightweight and flexible construction

Primary Applications

This advanced thermal insulation solution is specifically designed for:

Aerospace and defense applications
High thermal insulation protection for power battery cells and modules in advanced new energy passenger vehicles
Industrial furnaces and power plants
Other high-temperature industrial settings requiring superior thermal protection

Product Details

Manufactured by Ohory Electric in Dongguan, China, the Aerogel Blanket meets rigorous quality standards with certifications including ISO 9001, UL, IEC, CNAS, and CMA. The product is available with a minimum order quantity of 1000 pieces, with customizable packaging options available.

Frequently Asked Questions

What is the brand name of the Aerogel Blanket?

The brand name is Ohory Electric.

Where is the Aerogel Blanket manufactured?

Manufactured in Dongguan, China.

What certifications does the product have?

Certified with ISO 9001, UL, IEC, CNAS, and CMA.

What is the minimum order quantity?

Minimum order quantity is 1000 pieces.

What payment methods are accepted?

TT (Telegraphic Transfer) or LC (Letter of Credit).
