Attribute	Value
Fire Rating	UL94 V-0
Thickness Range	0.5~6mm
Voltage Resistance	No breakdown, arcing, leakage current <1mA (3000V, DC, 60s)
Insulation Resistance	>500MΩ (1000V, DC, 60s)
Color Options	White/Black
Hydrophobicity	>98%
Thermal Conductivity	25°C: ≤0.025W/(m·K) 500°C: ≤0.08W/(m·K)
Temperature Range	350°C-1300°C

Product Features

Exceptional thermal insulation with ultra-low conductivity
Superior hydrophobicity (>98%) for moisture resistance
High voltage resistance up to 3000V with no breakdown
UL94 V-0 fire rating for enhanced safety
Available in white or black for design flexibility
Thickness options from 0.5mm to 6mm

Primary Applications

Aerospace and defense thermal insulation
Power battery cell and module protection in electric vehicles
High-temperature industrial processes
Electrical insulation systems
Critical infrastructure requiring fire-resistant materials

Certifications & Manufacturing

Manufactured in Dongguan, China
Certified: ISO 9001, UL, IEC, CNAS, CMA
Brand: Ohory Electric

Frequently Asked Questions

What is the minimum order quantity?

1000 pieces

What payment methods are accepted?

Telegraphic Transfer (TT) and Letter of Credit (LC)

What is the delivery time?

Depends on total order quantity (contact for details)

Tags:

Aerogel Blanket Voltage up 3000V

Extreme Environments Aerogel Blanket

Hydrophobic Aerogel Blanket

Flame Inhibiting CR / EPDM Cellular Material flame resistant foam Ultimate Fire Retardant Solution For Automotive Industry

Get Best Price

Water Absorption Less Than 5% Flame Retardant CR / EPDM Foam for Rubber Products Top Notch Fire Resistance

Get Best Price

Black Flame Retardant CR / EPDM Foam Excellent Chemical Resistance 150% Elongation At Break

Get Best Price

Rubber Fire Resistant Chloroprene / Ethylene Propylene Diene Monomer Foam Chemical Resistance with Rubber

Get Best Price

Excellent Chemical Resistance Flame Retardant CR / EPDM Foam For High Temperature Environments -40°C To 120°C

Get Best Price

Automotive Fireproof CR / EPDM Sponge Customizable Thickness 0.5-50mm

Get Best Price

Water Absorption Less Than 5% Flame Retardant CR / EPDM Foam 1.5 G/cm3 Density 150% Elongation At Break

Get Best Price

Customizable Flame Retardant CR / EPDM Foam 1.5 G/cm3 Density 0.5-50mm Thickness

Get Best Price

Products Details

Home > Products >

Fire Resistant Materials

Hydrophobic Aerogel Blanket Resistant To 1300°C Voltage Up To 3000V For Extreme Environments

All Category

Electric Busway

Low Voltage Busway

Lighting Busway

High Voltage Bus Duct

Fire Rated Bus Duct

Cast Resin Bus Duct

Aluminum Bus Duct

Power Bus Duct

Cable Management Tray

Fast Charger Station

Portable Solar Panels

Portable Lithium Battery Pack

Power Distribution Cabinet

Electrical Power Transformer

Flexible Copper Busbar

Track Socket

Fire Resistant Materials

Polycarbonate Insulation Films

Flame Retardant Silicone Foam

Flame Retardant Polyurethane Foam

Flame Retardant EVA foam

Flame Retardant CR/EPDM foam

Aerogel Blanket

Fire Resistant Adhesive Tape

Hydrophobic Aerogel Blanket Resistant To 1300°C Voltage Up To 3000V For Extreme Environments

Brand Name:	Ohory Electric
MOQ:	1000 Pcs
Price:	Confirm Price Based On Product
Packaging Details:	According To Requirement
Payment Terms:	TT/LC

Detail Information

Product Description

Detail Information

Brand Name:

Ohory Electric

Certification:

ISO 9001/UL/IEC/CNAS/CMA

Fire Rating:

UL94 V-0

Application Scenarios:

Aerospace And Defense, High Themal Insulation Protection For Power Battery Cells And Modules In Advanced New Energy Passenger Vehicles

Thickness:

0.5~6mm

Voltage Resistance:

No Breakdown,arcing,leakage Current

Insulation Resistance:

>500MΩ(1000V，DC，60s)

Color:

White/Black

Hydrophobicity:

>98%

Thermal Conductivity:

25°C，≤0.025W/(m·K)/500°c，≤0.08W/(m·K)

Minimum Order Quantity:

1000 Pcs

Price:

Confirm Price Based On Product

Packaging Details:

According To Requirement

Delivery Time:

Depends On Total Quantity

Payment Terms:

TT/LC

Highlight:

Aerogel Blanket Voltage up 3000V

Extreme Environments Aerogel Blanket

Hydrophobic Aerogel Blanket

Product Description

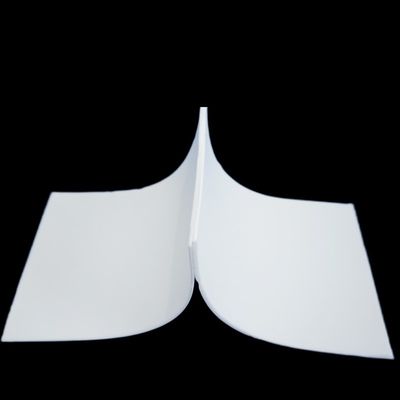

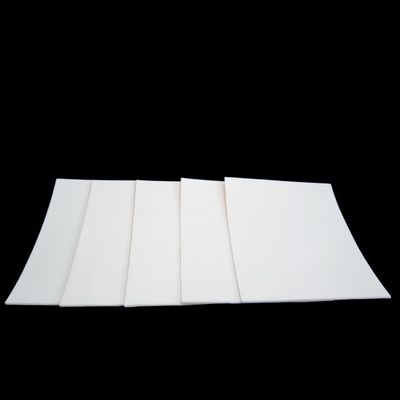

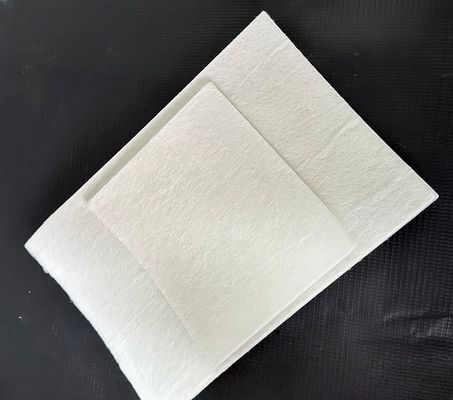

Hydrophobic Aerogel Blanket Resistant to 1300°C and Voltage up to 3000V
