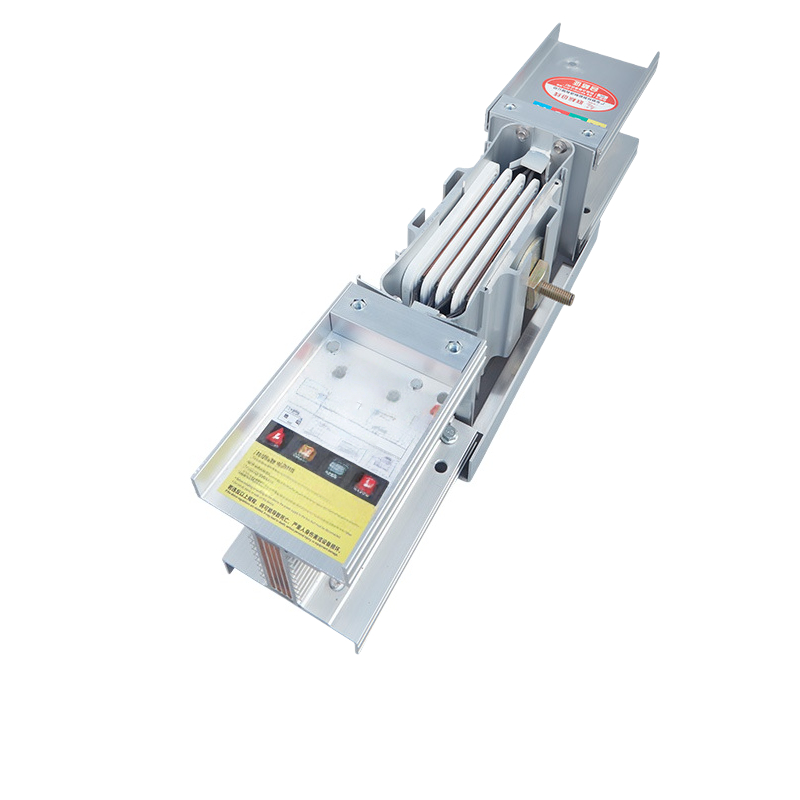

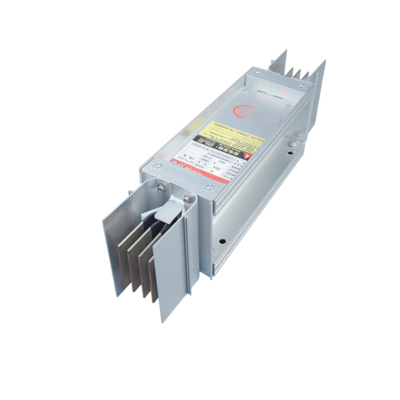

Electric Busway with Epoxy Resin Insulation IP65 Rated

Brand Name:	Ohory
MOQ:	188 Meters
Price:	Confirm Price Based On Product
Packaging Details:	According To Requirement
Payment Terms:	Advance 30% Deposit And Ship After Receiving 70% Final Payment

Detail Information

Product Description

Detail Information

Certification:

ISO 9001/UL/IEC/CNAS/CMA

Insulation Material:

Epoxy Resin

Executive Standards:

GB/T7251.6-2015、 1EC61439-6:2012

Protection Level:

IP65

Fire Resistance:

Class FV-0

Busbar Shape:

Rectangular

Power Supply:

Electricity

Function:

Transmission And Distribution

Housing:

6063-T5 Aluminum Magnesiun Alloy

Supply Ability:

1500 Mile/Miles Per Day

Highlight:

Electric Busway epoxy resin insulation

IP65 rated Electric Busway

Electric Busway with warranty

Product Description

50-60HZ Rated Frequency Busway Electrical with Professional and RoHS Certification

Product Attributes

Attribute	Value
Insulation Material	Epoxy Resin
Executive Standards	GB/T7251.6-2015, IEC61439-6:2012
Protection Level	IP65
Fire Resistance	Class FV-0
Busbar Shape	Rectangular
Power Supply	Electricity
Function	Transmission And Distribution
Housing	6063-T5 Aluminum Magnesium Alloy

Product Description

The Electric Busway is an innovative and efficient solution for electrical power distribution, commonly used in industrial and commercial settings. This busway system provides a safe and reliable way to transmit electricity, with several key features that set it apart from traditional wiring systems.

The insulation material is made of high-quality Epoxy Resin, providing excellent electrical insulation properties for safe and efficient power transmission. The rectangular busbar shape offers a sturdy, compact design for easy installation and maintenance. The housing is constructed with 6063-T5 Aluminum Magnesium Alloy, providing durability, strength, and corrosion resistance.

With a fire resistance rating of Class FV-0, the busway system can withstand extreme heat conditions, offering enhanced safety. The product meets industry standards GB/T7251.6-2015 and IEC61439-6:2012, ensuring high quality and reliability.

Key Features

Product Name: Electric Busway
Installation Type: Indoor/Outdoor
Insulation Material: Epoxy Resin
Function: Transmission And Distribution
Busbar Size: 100mm × 50mm
Temperature Range: -50°C to +120°C

Technical Parameters

Parameter	Value
Power Rating	3.3kV-36kV
Power Supply	Electricity
Certifications	CE, RoHS, UL
Temperature Range	-50°C to +120°C
Rated Frequency	50-60HZ
Function	Transmission And Distribution
Executive Standards	GB/T7251.6-2015, IEC61439-6:2012
Busbar Size	100mm × 50mm
Insulation Material	Epoxy Resin
Fire Resistance	Class FV-0

Applications

The Ohory Electric Busway is suitable for industrial buildings, commercial complexes, data centers, hospitals, and other large-scale facilities requiring safe and efficient power distribution. With certifications including ISO 9001, UL, IEC, CNAS, and CMA, it meets rigorous industry standards.

Available with a minimum order quantity of 188 meters and daily supply capacity of 1500 miles, the product offers flexible solutions for projects of all sizes. Customized pricing, packaging, and delivery options are available based on specifications and order quantity.

Frequently Asked Questions

Q: What is the brand name of the Electric Busway product?

A: The brand name is Ohory.

Q: What certifications does the Electric Busway product have?

A: The product is certified with ISO 9001, UL, IEC, CNAS, and CMA.

Q: What is the minimum order quantity for the Electric Busway product?

A: The minimum order quantity is 188 meters.

Q: How is the price determined for the Electric Busway product?

A: The price is confirmed based on the product specifications.

Q: What are the payment terms for purchasing the Electric Busway product?

A: Payment terms require a 30% advance deposit, with the remaining 70% paid before shipping.
