LV Series Compact Busway 3P4W 100kA Short Circuit Rating

Brand Name:	Ohory
MOQ:	188 Meters
Price:	Confirm Price Based On Product
Packaging Details:	According To Requirement
Payment Terms:	Advance 30% Deposit And Ship After Receiving 70% Final Payment

Detail Information

Product Description

Detail Information

Certification:

ISO 9001/UL/IEC/CNAS/CMA

Busbar Color:

Silver

Product Series:

LV Series Compact Busway

System:

3P4W/3P5W

Frequency:

50Hz/60Hz

Number Of Wires:

Busbar Configuration:

3-phase 4-wire

Conductor Material:

Copper

Application:

Industrial/Commercial

Supply Ability:

1500 Mile/Miles Per Day

Highlight:

compact busway 3P4W 100kA

low voltage busway short circuit rating

LV series busway 3 phase

Product Description

Surface Or Flush Mount Low Voltage Busduct with Silver Busbar Performance

Product Description

The Low Voltage Busway System is a highly efficient and reliable electrical distribution solution designed for various applications. Featuring a 3-phase 4-wire busbar configuration, this system delivers power safely and efficiently with high-quality copper conductors that ensure excellent conductivity and minimal energy loss.

With an impressive short circuit rating of up to 100kA, the system effectively handles sudden electrical faults, providing reliable power distribution. Designed to meet modern electrical system demands, it offers robust durability and comes with a 1-year warranty for peace of mind.

The system is easy to install and maintain, with 50Hz/60Hz frequency compatibility for seamless integration into diverse electrical infrastructures. Ideal for commercial buildings, industrial facilities, and other applications requiring efficient power distribution.

Key Features

Product Name: Low Voltage Busway
Busbar Width: Up To 100mm
System: 3P4W/3P5W
Frequency: 50Hz/60Hz
Warranty: 1 Year
Mounting Type: Surface Or Flush Mount

Technical Specifications

Voltage Rating	600V
Current Rating	Up To 6000A
Mounting Type	Surface Or Flush Mount
Conductor Material	Copper
Warranty	1 Year
Frequency	50Hz/60Hz
Number Of Wires	3
Busbar Width	Up To 100mm
Busbar Configuration	3-phase 4-wire
Short Circuit Rating	Up To 100kA

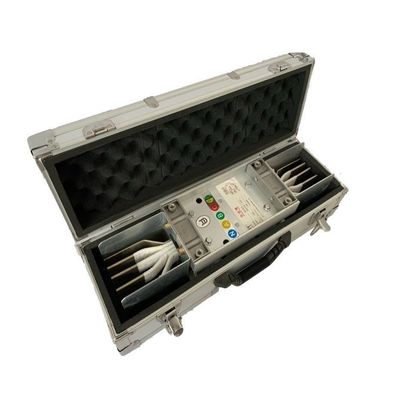

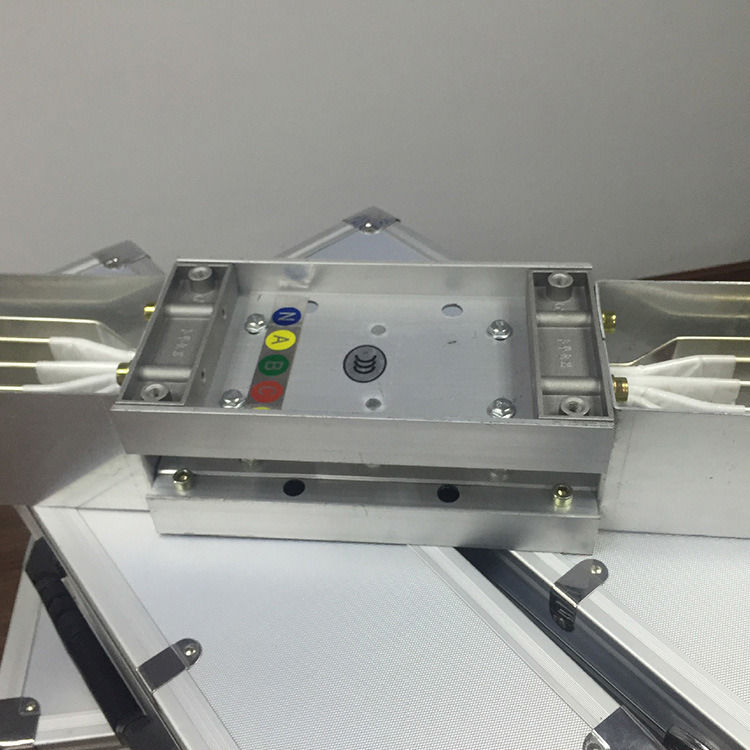

LV Series Compact Busway 3P4W 100kA Short Circuit Rating 0

Applications

The Low Voltage Busway (also known as LV Bus Duct or Low Voltage Busbar System) is a versatile power distribution solution suitable for commercial buildings, industrial facilities, data centers, hospitals, and shopping malls. Its flexible design makes it ideal for both new construction and retrofit projects.

Manufactured by Ohory, this product meets ISO 9001, UL, IEC, CNAS, and CMA certifications. Available with a minimum order quantity of 188 meters, it features IP55/IP65 protection and comes in a silver busbar finish. Payment terms include a 30% advance deposit with the balance due before shipping.

Frequently Asked Questions

What is the brand name of the Low Voltage Busway product?

The brand name is Ohory.

What certifications does the Low Voltage Busway product have?

Certifications include ISO 9001, UL, IEC, CNAS, and CMA.

What is the minimum order quantity for the Low Voltage Busway product?

Minimum order quantity is 188 meters.

What are the payment terms for purchasing the Low Voltage Busway product?

30% advance deposit with 70% balance due before shipping.

What is the supply ability of the Low Voltage Busway product?

Supply capacity is 1500 miles per day.
