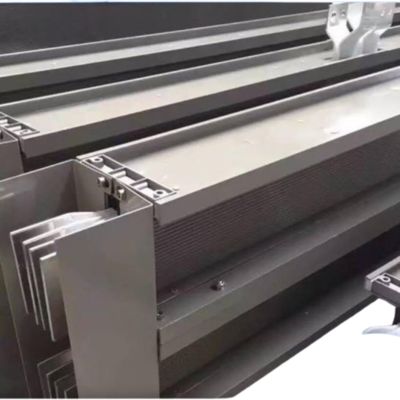

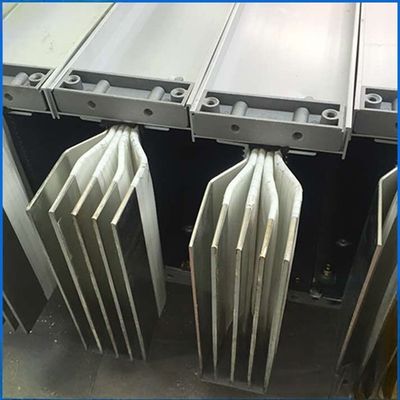

3-Phase 4-Wire Low Voltage Busway 6000A 100kA IP55/IP65
  • name
  • name

3-Phase 4-Wire Low Voltage Busway 6000A 100kA IP55/IP65

Brand Name: Ohory
MOQ: 188 Meters
Price: Confirm Price Based On Product
Packaging Details: According To Requirement
Payment Terms: Advance 30% Deposit And Ship After Receiving 70% Final Payment
Detail Information
Product Description
Detail Information
Certification:
ISO 9001/UL/IEC/CNAS/CMA
Busbar Configuration:
3-phase 4-wire
Frequency:
50Hz/60Hz
Current Rating:
Up To 6000A
Short Circuit Rating:
Up To 100kA
Busbar Color:
Silver
Conductor Material:
Copper
Protection Level:
IP55/IP65
Number Of Wires:
3
Supply Ability:
1500 Mile/Miles Per Day
Highlight:

3-phase low voltage busway 6000A

,

4-wire busway IP55 IP65

,

low voltage busway 100kA

Product Description
Up To 100mm Busbar Width Low Voltage Busway With 3-phase 4-wire Configuration
Product Overview
The Low Voltage Busway is a reliable and efficient power distribution solution featuring IP55/IP65 protection. Designed as a Low Voltage Busduct System, it provides secure electrical distribution for industrial and commercial applications. The 3-phase 4-wire configuration ensures stable power distribution, while the 100kA short circuit rating offers superior protection against electrical faults.
Key Features
  • Product Name: Low Voltage Busway
  • Voltage Rating: 600V
  • Busbar Color: Silver
  • Busbar Configuration: 3-phase 4-wire
  • Protection Level: IP55/IP65
  • System: 3P4W/3P5W
Technical Specifications
Frequency 50Hz/60Hz
Short Circuit Rating Up To 100kA
Product Series LV Series Compact Busway
Application Industrial/Commercial
Mounting Type Surface Or Flush Mount
Number Of Wires 3
Warranty 1 Year
Busbar Width Up To 100mm
Applications
The Ohory Low Voltage Busway is certified with ISO 9001, UL, IEC, CNAS, and CMA, ensuring high quality and safety standards. Suitable for industrial facilities, commercial buildings, data centers, and power distribution networks, this versatile solution features copper conductors and customizable packaging. Available in 3P4W and 3P5W configurations with a production capacity of 1500 meters per day.

3-Phase 4-Wire Low Voltage Busway 6000A 100kA IP55/IP65 0

Ordering Information
  • Minimum Order Quantity: 188 meters
  • Payment Terms: 30% deposit, 70% before shipping
  • Delivery Time: Based on order quantity
Frequently Asked Questions
What is the brand name of the Low Voltage Busway product?
The brand name is Ohory.
What certifications does the product have?
ISO 9001, UL, IEC, CNAS, and CMA certifications.
What is the supply capacity?
1500 meters per day production capacity.
Tags:

LV Bus Duct

Low Voltage Busbar

Low Voltage Bus Bar
