Electric Busway
>

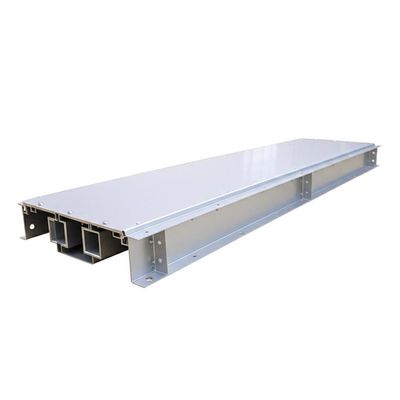

Rectangular Electric Busway with Indoor Outdoor Installation Customizable Size and 3.3kV-36kV Power Rating for Power Distribution Systems

Rectangular Electric Busway with Indoor Outdoor Installation Customizable Size and 3.3kV-36kV Power Rating for Power Distribution Systems

Brand Name: Ohory
MOQ: 188 Meters
Price: Confirm Price Based On Product
Packaging Details: According To Requirement
Payment Terms: Advance 30% Deposit And Ship After Receiving 70% Final Payment
Detail Information
Certification:
ISO 9001/UL/IEC/CNAS/CMA
Rated Frequency:
50-60HZ
Conductor Material:
Copper
Busbar Configuration:
3-Phase, 3-Wire Or 3-Phase, 4-Wire
Power Rating:
3.3kV-36kV
Insulation Class:
F
Product Type:
Busway
Rated Current:
1000A
Housing:
Aluminum Alloy
Supply Ability:
1500 Mile/Miles Per Day
Highlight:

Rectangular Electric Busway

,

1000A Busway

,

Electrical Busway Supplier

Product Description

Rectangular Electric Busway with Indoor Outdoor Installation Customizable Size and 3.3kV-36kV Power Rating for Power Distribution Systems Rated 1000A

In short: Ohory builds the Rectangular Electric Busway with Indoor Outdoor Installation Customizable Size and 3.3kV-36kV Power Rating for Power Distribution Systems for industrial power distribution, specified with a 1000A current rating, 3.3kV-36kV operation.

Quick Facts

ItemDetail
Rated current1000A
Voltage range3.3kV-36kV
InsulationF
HousingAluminum Alloy
Configuration3-Phase, 3-Wire Or 3-Phase, 4-Wire
Frequency50-60HZ
CertificationISO 9001/UL/IEC/CNAS/CMA

Key Features

  • Voltage range — Suited to 3.3kV-36kV systems with margin for normal supply variation.
  • Conductor arrangement — 3-Phase, 3-Wire Or 3-Phase, 4-Wire configuration matches the earthing and neutral practice of the project.
  • Certification — Supplied with ISO 9001/UL/IEC/CNAS/CMA documentation for tender submission.
  • Housing — The Aluminum Alloy housing resists corrosion and holds its shape over long spans.
  • Current capacity — Rated 1000A for main feeders and heavy tenant loads.

Technical Specifications

ParameterSpecification
Rated current1000A
Voltage range3.3kV-36kV
InsulationF
HousingAluminum Alloy
Configuration3-Phase, 3-Wire Or 3-Phase, 4-Wire
Frequency50-60HZ
CertificationISO 9001/UL/IEC/CNAS/CMA
Product TypeBusway

Typical Applications

  • industrial power distribution
  • commercial building feeders
  • plant room distribution

Frequently Asked Questions

Q: What is the rated current?

A: The rated current is 1000A, confirmed against ambient temperature and installation method.

Q: Which voltage range is supported?

A: The product is specified for 3.3kV-36kV systems.

Q: What insulation is used?

A: F insulation is used for the busbar system.

Ordering Notes

Send your single line diagram, route drawing and load schedule so our engineers can confirm configuration, section lengths and delivery schedule.
