40FT Double Wing Expandable Folding Container House Prefab Sandwich Panel Mobile Home Galvanized Steel Frame

Brand Name:	oehome
Model Number:	40FT
MOQ:	5
Price:	SG$5,046.82-8,929.98

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Frame Material:

Steel

Feature:

Eco-Friendly, Durable, Foldable, Adjustable Height, Convertible, Extendable, Modular, Storage , Other

Mail Packing:

Application:

Home Office, Living Room, Dining, Outdoor, Hotel, Apartment, Office Building, Hall, Other, Home Bar, Villa

Design Style:

Modern

Assembly Instructions:

Assembly Required

Legs:

Metal

Highlight:

40FT Expandable Folding Container House

Fully Galvanized Steel Frame Container House

65mm EPS Sandwich Panel Container House

Product Description

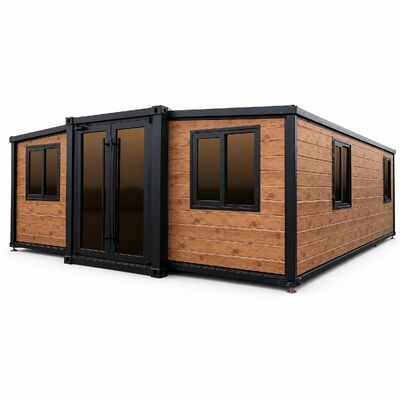

40FT Double Wing Expandable Folding Container House

Product Specifications

Item	Specification

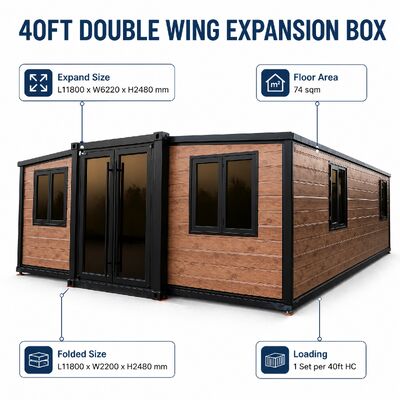

Expanded size	L11800 x W6220 x H2480 mm
Internal size	L11540 x W6060 x H2240 mm
Folded size	L11800 x W2200 x H2480 mm
Floor area	72 m²
Accommodation	3-6 people (one hall layout)
Net weight	4.6 tons
Power	12 KW
Main frame	Fully galvanized steel, 80x140x3.0 mm square tube
Wall panel	65 mm EPS color steel sandwich panel
Roof panel	50 mm EPS color steel panel + corrugated veneer
Floor	18 mm fireproof cement fiber board (main) / 18 mm bamboo plywood (wings)
Door / window	Steel door 840x2030 mm / UPVC sliding window 920x920 mm
Electrical	32A leakage protector, 220V/50Hz, customizable per country certification
Accessories	Skirting, corner guards, waterproof tape, structural adhesive, etc.
Loading	1 set per 40HQ container

Product Overview

The 40FT Double Wing Expansion Box is the largest model in the series, providing up to 72 m² of living space through two side wing extensions. It is designed for family homes, resort accommodation, hotels, large-scale temporary housing and disaster relief shelters.

Built on a heavy-duty fully galvanized steel frame (80x140x3.0 mm main tubes) covered with EPS color steel sandwich panels, it offers strong structural stability, thermal insulation, soundproofing and weather resistance. The factory completes all interior finishing and supplies installation accessories, so the house arrives as a complete turnkey unit that can be moved in shortly after unfolding on site.

Spacious 72 m² Double Wing Layout: Two side wings expand the house to a generous floor area of 72 m², comfortably accommodating 3-6 people, ideal for family homes, resort suites and large-scale temporary housing.
Heavy-duty Galvanized Frame: The main frame uses thicker 80x140x3.0 mm fully galvanized square tubes with high-strength connections, enabling the house to withstand magnitude-8 earthquakes and level-12 typhoons for long-term safe use.
Move-in Ready Turnkey House: Full interior finishing, lighting, sockets and switch systems are completed at the factory; the package also includes skirting lines, corner guards, waterproof tape, structural adhesive and other accessories for complete on-site installation.
Container-matched Shipping: Folded size L11800 x W2200 x H2480 mm fits standard sea freight dimensions, with 1 set per 40HQ container, protecting the structure during long-distance transport.
Fully Customizable Configuration: Layout, wall panel color, insulation and fire rating, doors, windows, flooring and electric standards can be customized, with certified circuit systems available for different destination countries.

Applications

House expansion / backyard extension

Temporary living, site dormitory

Vacation tourism, camping, resort cabin

Disaster relief & post-disaster reconstruction

Mobile retail & pop-up store

Site office, guard house

Product Packaging

Export packaging is an important part of international sales of goods. It should pay attention to details, meet standards and reflect characteristics to ensure that the goods are safely and smoothly transported to customers.

(Using wooden frame packaging will increase the volume and weight, so additional charges will be made for transportation and packaging.)

Carton Packaging:

Thickened foam + Layers of cartons

(Suitable for full container transport)

Wooden Box Packaging:

Closed Wooden Box

(Safe and Secure)

Wooden Frame Packaging:

Wooden Strip Packaging

(Prevent Breakage)

Company Profile

Dongguan OE Home Furniture Co., Ltd., founded in 2012, offers a one-stop procurement service for bedroom, living room, steel furniture, wardrobes, kitchen cupboards, joinery, vanity tables, and Hollywood makeup mirrors.

Our 4200m² factory in Dongguan employs 50 skilled workers and is equipped with advanced machinery. We specialize in OEM/ODM services, providing customized furniture designs and matching solutions for interior projects, furniture stores, hotels, shopping malls, and restaurants.

With a focus on environmental protection, our products meet international standards. Over the past decade, our sales have grown rapidly, reaching $3.5 million in 2023. We export to countries like the USA, Canada, UK, Germany, and more. OE Home is your professional custom furnishing solution provider in China, offering a seamless full-house customization experience.

OE Home Invites Global Agents To Join Us As Your Professional Custom Furnishing Solution Provider In China.

Why Choose Us

OEHOME Provides Complete Furniture Solutions

20+ Years Experience One-Stop Furniture Manufacturer

Established: 2012.08.06

Factory Area: 4300㎡

After-sales service: Lifetime

Quality assurance: 3-5 years

Style: modern/simple/light luxury/American/Italian/French/Chinese/Nordic/rural/retro/neoclassical/Southeast Asia/Mediterranean/cream/log, etc.

Project Scope: hotel/apartment/resort/villa/commercial, etc.

Customized services: Support customized fabrics, sizes and colors. Free fabric samples and sample books

Fabric: Cotton / Linen / Canvas / Flannel / Matte / Corduroy / Chenille / Suede / Lambskin

Leather: Genuine leather / Microfiber leather / Wax leather / PU leather / Artificial leather

Wood: Teak / Black Walnut / Ash / Pine / White Oak / Beech/Rubberwood

Metal: Stainless Steel / Iron / Brass / Aluminum Alloy

Glass: Ordinary flat glass / Tempered glass / Plexiglas

Stone: Natural marble / Artificial marble / Sintered stone

⚒️

Exquisite Craftsmanship

20 Years Experience Craftsman

🎨

Personalized Custom Design

1:1 Professional Consultation

🌿

High-Quality Materials

Eco-Friendly And Harmless

📐

Free Design Drawing

3D Rendering & VR Display

⚡

Efficient Production

Strict Quality Inspection

🔧

On-Site Installation

After-Sales Service

Welcome To Join VIP Members And Enjoy Super Preferential Services

Certifications

Business Partners

Customer Positive Cases

One-stop Whole House Customization

OEHOME Trustworthy Furniture Factory

🚚

Timely Delivery Delivery process

📅

Free Design By Designer Designer services

👥

Professional Service Team

🏠

Support Door-To-Door Installation Installation service

Frequently Asked Questions

1. Who are we?

We are based in Guangdong Province, China, start from 2012,sell to North America(36.00%),Oceania(32.00%),Southern Europe(14.00%),Western Europe(8.00%),Southeast Asia(4.00%),Africa(3.00%),Mid East(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3. What can you buy from us?

Home Furniture, Outdoor Furniture, Wall Arts, Makeup Mirror

4. Why should you buy from us not from other suppliers?

1. FACTORY PRICE 2. Qualified Products with 5 years warranty 3. Customized designs accepted 4. Quick service

5. What services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Arabic

6. If could customize OEM design?

Yes, Custom manufacturing is our specialty! We can create custom furniture to meet your project requirements. We will prepare the veneer, fabric and steel sample for client to confirm.

7. What's your Payment terms?

30% deposit before produce and 70 % balance before loading

8. When can i expect the customized product to be finished?

Sample: 25-35 working days (Standard); Production Leadtime: 35-55 working days (Standard) after confirmed deposit and shop drawing & material.

9. What is your MOQ?

Our MOQ is: 5-10 pcs each design. All the products can be customized

10. What about the warranty of your factory?

We promise all customers with 1 year warranty, before packing we have a professional QC team to check each piece to make sure all the furniture keep a to quality to show to client.

11. Why are your prices different from as it shown on Alibaba?

The prices showing on Alibaba are just price ranges for references, actual price will be up to TTL order volume, material selection , shipping way ( LCL or FCL) and etc. orientation. The most important point for you is to start with reasonable MOQ and competitive prices to test market.

12. How will you handle LCL shipment ( or combine with different vendors )?

It is acceptable to do like this for trial order, but there will be some extra charges for loading in different locations and if your other vendor's terms is EXW, we will charge for local FOB fees, trucks shared based on respective cubic meters.
