10FT Double Wing Expandable Folding Container House Prefab Sandwich Panel Mobile Home Galvanized Steel Frame

Brand Name:	oehome
Model Number:	10FT
MOQ:	5
Price:	$2,899-5,899

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Frame Material:

Steel

Feature:

Eco-Friendly, Durable, Foldable, Adjustable Height, Convertible, Extendable, Modular, Storage , Other

Mail Packing:

Application:

Home Office, Living Room, Dining, Outdoor, Hotel, Apartment, Office Building, Hall, Other, Home Bar, Villa

Design Style:

Modern

Assembly Instructions:

Assembly Required

Legs:

Metal

Highlight:

10FT Expandable Folding Container House

18.5 m² Foldable Container House

Fully Galvanized Steel Frame House

Product Description

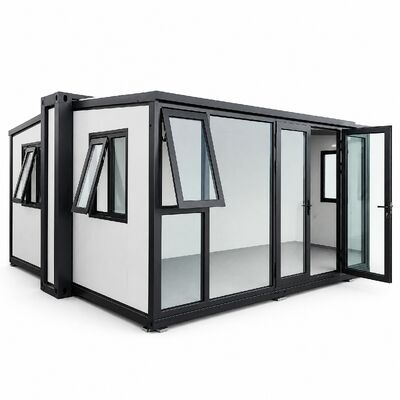

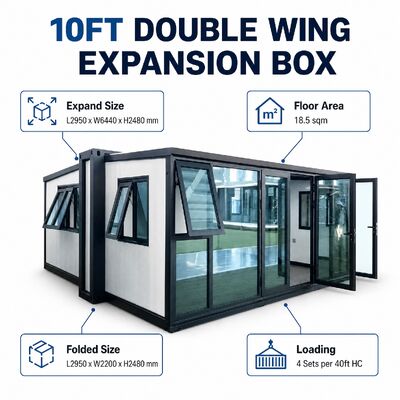

10FT Double Wing Expandable Folding Container House

Product Overview

Item	Specification
Expanded size	L2950 x W6440 x H2480 mm
Internal size	L2370 x W6140 x H2240 mm
Folded size	L2950 x W2200 x H2480 mm
Floor area	18.5 m²
Accommodation	2-4 people (one hall layout)
Net weight	1.6 tons
Power	12 KW
Main frame	Fully galvanized steel, 80x100x2.5 mm square tube
Wall panel	65 mm EPS color steel sandwich panel
Roof panel	50 mm EPS color steel panel + corrugated veneer
Floor	18 mm fireproof cement fiber board (main) / 18 mm bamboo plywood (wings)
Door	Steel single door 840x2030 mm
Window	UPVC sliding window 920x920 mm
Electrical	32A leakage protector, 220V/50Hz, customizable per country certification
Loading	4 sets per 40HQ container

The 10FT Double Wing Expansion Box is a quickly buildable and easily disassembled mobile building, ideal for house expansion, temporary living, vacation tourism, disaster relief and post-disaster reconstruction. It is made of a high-strength fully galvanized steel frame covered with environmentally friendly composite sandwich panels, combining lightweight, durability and sustainability. The foldable wing design doubles the usable floor area to 18.5 m² while keeping the folded profile within standard shipping container dimensions. Prefabricated and refined decoration are completed in the factory, so the house arrives as a turnkey unit that can be moved in immediately after unfolding and fixing on site.

Key Features

Quick Expand & Fold Design

The 10FT double wing expansion box adopts fully prefabricated components. It can be expanded and fixed on site within a short time without large equipment or professional construction crews, making deployment fast, simple and labor saving.

Earthquake & Typhoon Resistant Structure

Built on a fully galvanized steel frame with high-strength connections, the house withstands magnitude-8 earthquakes and level-12 typhoons, offering reliable shelter for both daily living and emergency response.

Move-in Ready Prefabrication

The interior is fully finished at the factory, including lighting, sockets, switch systems and decorative panels. Simply place, unfold and connect water and power to move in immediately with minimal on-site work.

Container-friendly Shipping

Folded size L2950 x W2200 x H2480 mm matches sea freight container dimensions, allowing 4 sets to be loaded in one 40HQ container, greatly saving transport and storage cost.

Fully Customizable Options

Size, layout, wall panel color, insulation and fire rating, doors, windows, flooring and electric standards can all be customized, with certified circuit systems available for different destination countries.

Applications

House expansion / backyard extension
Temporary living, site dormitory
Vacation tourism, camping, resort cabin
Disaster relief & post-disaster reconstruction
Mobile retail & pop-up store
Site office, guard house

Product Packaging

Export packaging is an important part of international sales of goods. It should pay attention to details, meet standards and reflect characteristics to ensure that the goods are safely and smoothly transported to customers.

Note: Using wooden frame packaging will increase the volume and weight, so additional charges will be made for transportation and packaging.

Carton Packaging

Thickened foam + Layers of cartons (Suitable for full container transport)

Wooden Box Packaging

Closed Wooden Box (Safe and Secure)

Wooden Frame Packaging

Wooden Strip Packaging (Prevent Breakage)

Company Profile

Dongguan OE Home Furniture Co., Ltd., founded in 2012, offers a one-stop procurement service for bedroom, living room, steel furniture, wardrobes, kitchen cupboards, joinery, vanity tables, and Hollywood makeup mirrors. Our 4200m² factory in Dongguan employs 50 skilled workers and is equipped with advanced machinery.

We specialize in OEM/ODM services, providing customized furniture designs and matching solutions for interior projects, furniture stores, hotels, shopping malls, and restaurants. With a focus on environmental protection, our products meet international standards. Over the past decade, our sales have grown rapidly, reaching $3.5 million in 2023. We export to countries like the USA, Canada, UK, Germany, and more. OE Home is your professional custom furnishing solution provider in China, offering a seamless full-house customization experience.

OE Home Invites Global Agents To Join Us As Your Professional Custom Furnishing Solution Provider In China.

Why Choose Us

OEHOME Provides Complete Furniture Solutions

20+ Years Experience One-Stop Furniture Manufacturer

Established:	2012.08.06	Factory Area:	4300㎡
After-sales service:	Lifetime	Quality assurance:	3-5 years
Style:	modern/simple/light luxury/American/Italian/French/Chinese/Nordic/rural/retro/neoclassical/Southeast Asia/Mediterranean/cream/log, etc.
Project Scope:	hotel/apartment/resort/villa/commercial, etc.
Customized services:	Support customized fabrics, sizes and colors. Free fabric samples and sample books

Fabric: Cotton / Linen / Canvas / Flannel / Matte / Corduroy / Chenille / Suede / Lambskin

Leather: Genuine leather / Microfiber leather / Wax leather / PU leather / Artificial leather

Wood: Teak / Black Walnut / Ash / Pine / White Oak / Beech/Rubberwood

Metal: Stainless Steel / Iron / Brass / Aluminum Alloy

Glass: Ordinary flat glass / Tempered glass / Plexiglas

Stone: Natural marble / Artificial marble / Sintered stone

Exquisite Craftsmanship

20 Years Experience Craftsman

Personalized Custom Design

1:1 Professional Consultation

High-Quality Materials

Eco-Friendly And Harmless

Free Design Drawing

3D Rendering & VR Display

Efficient Production

Strict Quality Inspection

On-Site Installation

After-Sales Service

Welcome To Join VIP Members And Enjoy Super Preferential Services

Certifications

Business Partners

Customer Positive Cases

One-stop Whole House Customization

OEHOME Trustworthy Furniture Factory

Timely Delivery

Free Design By Designer

Professional Service Team

Support Door-To-Door Installation

Frequently Asked Questions

1. Who are we?

We are based in Guangdong Province, China, start from 2012, sell to North America (36.00%), Oceania (32.00%), Southern Europe (14.00%), Western Europe (8.00%), Southeast Asia (4.00%), Africa (3.00%), Mid East (3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3. What can you buy from us?

Home Furniture, Outdoor Furniture, Wall Arts, Makeup Mirror

4. Why should you buy from us not from other suppliers?

FACTORY PRICE
Qualified Products with 5 years warranty
Customized designs accepted
Quick service

5. What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery

Accepted Payment Currency: USD, EUR, CNY

Accepted Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Cash, Escrow

Language Spoken: English, Chinese, Spanish, Arabic

6. If could customize OEM design?

Yes, Custom manufacturing is our specialty! We can create custom furniture to meet your project requirements. We will prepare the veneer, fabric and steel sample for client to confirm.

7. What's your Payment terms?

30% deposit before produce and 70% balance before loading

8. When can I expect the customized product to be finished?

Sample: 25-35 working days (Standard); Production Leadtime: 35-55 working days (Standard) after confirmed deposit and shop drawing & material.

9. What is your MOQ?

Our MOQ is: 5-10 pcs each design. All the products can be customized.

10. What about the warranty of your factory?

We promise all customers with 1 year warranty, before packing we have a professional QC team to check each piece to make sure all the furniture keep a top quality to show to client.

11. Why are your prices different from as it shown on Alibaba?

The prices showing on Alibaba are just price ranges for references, actual price will be up to TTL order volume, material selection, shipping way (LCL or FCL) and etc. orientation. The most important point for you is to start with reasonable MOQ and competitive prices to test market.

12. How will you handle LCL shipment (or combine with different vendors)?

It is acceptable to do like this for trial order, but there will be some extra charges for loading in different locations and if your other vendor's terms is EXW, we will charge for local FOB fees, trucks shared based on respective cubic meters.
