Space Capsule House
>
20FT Double Wing Expandable Folding Container House Prefab Sandwich Panel Mobile Home Galvanized Steel Frame

20FT Double Wing Expandable Folding Container House Prefab Sandwich Panel Mobile Home Galvanized Steel Frame

Brand Name: oehome
Model Number: 20FT
MOQ: 5
Price: €3,500.60-6,029.53
Detail Information
Place of Origin:
Guangdong, China
Frame Material:
Steel
Feature:
Eco-Friendly, Durable, Foldable, Adjustable Height, Convertible, Extendable, Modular, Storage , Other
Mail Packing:
N
Application:
Home Office, Living Room, Dining, Outdoor, Hotel, Apartment, Office Building, Hall, Other, Home Bar, Villa
Design Style:
Modern
Assembly Instructions:
Assembly Required
Legs:
Metal
Highlight:

20FT Expandable Folding Container House

,

Galvanized Steel Frame Modular Container House

,

37 m² Prefab Container House

Product Description
20FT Double Wing Expandable Folding Container House
Product Overview

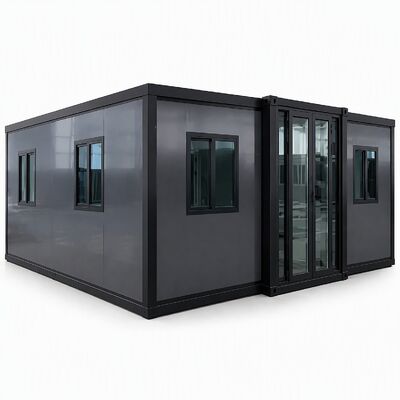

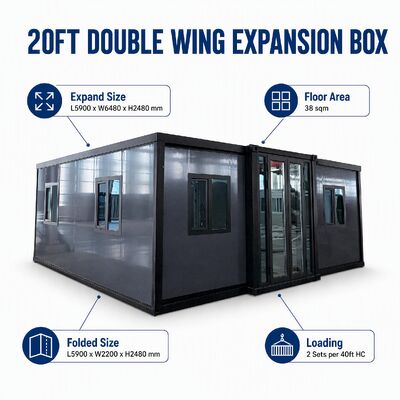

20FT Double Wing Expandable Container House exterior view 20FT Double Wing Expandable Container House interior view
Item Specification
Expanded size L5900 x W6300 x H2480 mm
Internal size L5460 x W6140 x H2240 mm
Folded size L5900 x W2200 x H2480 mm
Floor area 37 m²
Accommodation 2-4 people (one hall layout)
Net weight 2.8 tons
Power 12 KW
Main frame Fully galvanized steel, 80x100x2.5 mm square tube
Wall panel 65 mm EPS color steel sandwich panel
Roof panel 50 mm EPS color steel panel + corrugated veneer
Floor 18 mm fireproof cement fiber board (main) / 18 mm bamboo plywood (wings)
Door / window Steel single door 840x2030 mm / UPVC sliding window 920x920 mm
Electrical 32A leakage protector, 220V/50Hz, customizable per country certification
Loading 2 sets per 40HQ container

The 20FT Double Wing Expansion Box is a premium expandable folding container house that doubles its living space through two side wing extensions. With a floor area of 37 m², it is ideal for house expansion, resort accommodation, temporary housing, disaster relief and site offices. The house is built on a fully galvanized steel frame covered with EPS color steel sandwich panels, providing thermal insulation, soundproofing and weather resistance. The factory completes all interior finishing, including lighting, sockets, switches and decoration, so the unit arrives as a turnkey home that can be moved in shortly after unfolding on site.

Key Features
  • Double Wing Expanding Design: The two wings fold out from both sides of the container body, expanding the usable floor area to 37 m² and providing a bright, spacious interior far larger than standard single-unit container houses.
  • Move-in Ready Turnkey House: Interior finishing, lighting, sockets and switch systems are all completed at the factory. After unfolding and fixing on site, simply connect water and power to move in, with minimal on-site work required.
  • Sturdy Galvanized Steel Frame: The main frame uses 80x100x2.5 mm fully galvanized square tubes with high-strength connections, enabling the house to withstand magnitude-8 earthquakes and level-12 typhoons.
  • Container-matched Shipping: Folded size L5900 x W2200 x H2480 mm fits standard sea freight dimensions, loading 2 sets per 40HQ container, which saves transport and storage cost for overseas orders.
  • Fully Customizable Configuration: Layout, wall panel color, insulation and fire rating, doors, windows, flooring and electric standards can be customized, with certified circuit systems available for different destination countries.
Applications

House expansion / backyard extension • Temporary living, site dormitory • Vacation tourism, camping, resort cabin • Disaster relief & post-disaster reconstruction • Mobile retail & pop-up store • Site office, guard house

Container house application scenarios Container house interior layout Expanded container house exterior Container house installation process
Product Packaging

Export packaging is an important part of international sales of goods. It should pay attention to details, meet standards and reflect characteristics to ensure that the goods are safely and smoothly transported to customers. (Using wooden frame packaging will increase the volume and weight, so additional charges will be made for transportation and packaging.)

Carton packaging with thickened foam

Carton Packaging: Thickened foam + Layers of cartons (Suitable for full container transport)

Closed wooden box packaging

Wooden Box Packaging: Closed Wooden Box (Safe and Secure)

Wooden strip frame packaging

Wooden Frame Packaging: Wooden Strip Packaging (Prevent Breakage)

Company Profile
OE Home factory exterior OE Home production facility OE Home manufacturing process

Dongguan OE Home Furniture Co., Ltd., founded in 2012, offers a one-stop procurement service for bedroom, living room, steel furniture, wardrobes, kitchen cupboards, joinery, vanity tables, and Hollywood makeup mirrors. Our 4200m² factory in Dongguan employs 50 skilled workers and is equipped with advanced machinery. We specialize in OEM/ODM services, providing customized furniture designs and matching solutions for interior projects, furniture stores, hotels, shopping malls, and restaurants. With a focus on environmental protection, our products meet international standards. Over the past decade, our sales have grown rapidly, reaching $3.5 million in 2023. We export to countries like the USA, Canada, UK, Germany, and more. OE Home is your professional custom furnishing solution provider in China, offering a seamless full-house customization experience.

OE Home Invites Global Agents To Join Us As Your Professional Custom Furnishing Solution Provider In China.

OE Home product showcase 1 OE Home product showcase 2 OE Home product showcase 3 OE Home product showcase 4 OE Home product showcase 5 OE Home product showcase 6 OE Home product showcase 7
Why Choose Us

OEHOME Provides Complete Furniture Solutions

20+ Years Experience One-Stop Furniture Manufacturer

Established: 2012.08.06 Factory Area: 4300㎡
After-sales service: Lifetime Quality assurance: 3-5 years
Style: modern/simple/light luxury/American/Italian/French/Chinese/Nordic/rural/retro/neoclassical/Southeast Asia/Mediterranean/cream/log, etc.
Project Scope: hotel/apartment/resort/villa/commercial, etc.
Customized services: Support customized fabrics, sizes and colors. Free fabric samples and sample books
Fabric material samples

Fabric: Cotton / Linen / Canvas / Flannel / Matte / Corduroy / Chenille / Suede / Lambskin

Leather: Genuine leather / Microfiber leather / Wax leather / PU leather / Artificial leather

Wood and metal materials

Wood: Teak / Black Walnut / Ash / Pine / White Oak / Beech/Rubberwood

Metal: Stainless Steel / Iron / Brass / Aluminum Alloy

Glass and stone materials

Glass: Ordinary flat glass / Tempered glass / Plexiglas

Stone: Natural marble / Artificial marble / Sintered stone

Exquisite craftsmanship demonstration

Exquisite Craftsmanship
20 Years Experience Craftsman

Personalized design consultation

Personalized Custom Design
1:1 Professional Consultation

High-quality eco-friendly materials

High-Quality Materials
Eco-Friendly And Harmless

3D rendering design service

Free Design Drawing
3D Rendering & VR Display

Efficient production process

Efficient Production
Strict Quality Inspection

Welcome To Join VIP Members And Enjoy Super Preferential Services

Certifications
Company certifications and quality standards
Business Partners
Business partner logo 1 Business partner logo 2 Business partner logo 3 Business partner logo 4 Business partner logo 5 Business partner logo 6 Business partner logo 7 Business partner logo 8 Business partner logo 9
Customer Positive Cases
One-stop whole house customization project

One-stop Whole House Customization

Trustworthy furniture factory operations

OEHOME Trustworthy Furniture Factory

Timely delivery guarantee

Timely Delivery

Free design by professional designer

Free Design By Designer

Professional service team

Professional Service Team

Door-to-door installation support

Support Door-To-Door Installation

Customer project example 1 Customer project example 2 Customer project example 3 Customer project example 4
Frequently Asked Questions
FAQ section header image Customer service illustration Quality assurance process Manufacturing expertise
1. Who are we?

We are based in Guangdong Province, China, start from 2012,sell to North America(36.00%),Oceania(32.00%),Southern Europe(14.00%),Western Europe(8.00%),Southeast Asia(4.00%),Africa(3.00%),Mid East(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3. What can you buy from us?

Home Furniture, Outdoor Furniture, Wall Arts, Makeup Mirror

4. Why should you buy from us not from other suppliers?

1. FACTORY PRICE 2. Qualified Products with 5 years warranty 3. Customized designs accepted 4. Quick service

5. What services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Arabic

6. If could customize OEM design?

Yes, Custom manufacturing is our specialty! We can create custom furniture to meet your project requirements. We will prepare the veneer, fabric and steel sample for client to confirm.

7. What's your Payment terms?

30% deposit before produce and 70% balance before loading

8. When can I expect the customized product to be finished?

Sample: 25-35 working days (Standard); Production Leadtime: 35-55 working days (Standard) after confirmed deposit and shop drawing & material.

9. What is your MOQ?

Our MOQ is: 5-10 pcs each design. All the products can be customized

10. What about the warranty of your factory?

We promise all customers with 1 year warranty, before packing we have a professional QC team to check each piece to make sure all the furniture keep a top quality to show to client.

11. Why are your prices different from as it shown on Alibaba?

The prices showing on Alibaba are just price ranges for references, actual price will be up to TTL order volume, material selection, shipping way (LCL or FCL) and etc. orientation. The most important point for you is to start with reasonable MOQ and competitive prices to test market.

12. How will you handle LCL shipment (or combine with different vendors)?

It is acceptable to do like this for trial order, but there will be some extra charges for loading in different locations and if your other vendor's terms is EXW, we will charge for local FOB fees, trucks shared based on respective cubic meters.

FAQ conclusion and contact information
