Seismic Zone 4 Rated Busway System 1250A-5000A Welded Bracing Frames for AI Data Center Riser Distribution

Brand Name:	ohory
Model Number:	OH-DCB-SZ4
MOQ:	10 Meters
Price:	USD 130-330 / Meter
Packaging Details:	Frames and bracing crated separately, busway sections in plywood cases with joint alignment jigs
Payment Terms:	T/T, L/C at sight

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001 / UL 857 / IEC 61439 / CNAS / CMA

Rated Current:

1250A - 5000A

Seismic Qualification:

IEC 60068-3-3, Zone 4, Up To 1.0g Horizontal

Bracing Frame:

Welded Steel Frame, Hot Dip Galvanized

Anchor Schedule:

Project Specific, Stamped Calculation Report

Enclosure Thickness:

2.0mm To 3.0mm Steel

Rated Insulation Voltage:

1000V AC

Rated Working Voltage:

690V AC

Joint Design:

Double Bolt Rigid Joint With Anti Rotation Key

Inter Story Drift:

Accommodates Plus Minus 25mm Drift Without Conductor Stress

Protection Degree:

IP54 Indoor

Test Standard:

IEC 61439-6 / IEC 60068-3-3 / GB 7251.6

Supply Ability:

12000 Meters per Month

Highlight:

Seismic Zone 4 Busway System

1250A-5000A Welded Bracing Frames

AI Data Center Riser Busway

Product Description

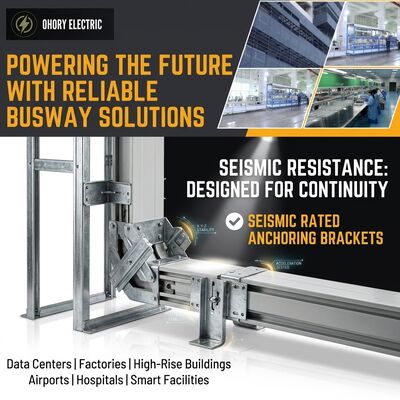

Seismic Zone 4 Busway System with Welded Bracing Frames

The OH-DCB-SZ4 series is qualified for buildings in high seismic regions. Frames are welded rather than field bolted so stiffness is repeatable, and each project receives a stamped anchor schedule that the structural engineer can check directly. Riser joints absorb inter story drift so conductors are never loaded by building movement.

Key Features

Zone 4 Seismic Qualification: Shake table tested to 1.0g horizontal acceleration with joints and bracing installed
Welded Bracing Frames: Hot dip galvanized welded frames replace field bolted brackets for predictable stiffness
Stamped Anchor Schedule: Project specific anchor layout and calculation report issued for structural review
Inter Story Drift Tolerance: Riser sections absorb plus minus 25mm building drift without loading conductors
Rigid Anti Rotation Joint: Double bolt joint with key keeps alignment under reverse cyclic movement

Applications

Data centers in seismic Zone 3 and Zone 4 regions
High rise vertical riser shafts crossing multiple floors
Overhead runs above hot aisle containment
Facilities where structural engineer requires shake table evidence

Technical Specifications

Rated Current	1250A - 5000A
Seismic Qualification	IEC 60068-3-3, Zone 4, up to 1.0g horizontal
Bracing Frame	Welded steel frame, hot dip galvanized
Anchor Schedule	Project specific, stamped calculation report
Enclosure Thickness	2.0mm to 3.0mm steel
Rated Insulation Voltage	1000V AC
Rated Working Voltage	690V AC
Joint Design	Double bolt rigid joint with anti rotation key
Inter Story Drift	Accommodates plus minus 25mm drift without conductor stress
Protection Degree	IP54 indoor
Test Standard	IEC 61439-6 / IEC 60068-3-3 / GB 7251.6

Compliance and Testing

Shake table testing follows IEC 60068-3-3 with the busway, joints and bracing assembled as installed. Test reports, anchor calculations and installation torque records are issued for structural and MEP review.

Ordering Information

Provide floor to floor heights, building drift figures, seismic zone and required ground acceleration, plus riser current and tap off locations.
