418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS All-in-One BESS System

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW

Rated Output Voltage:

400 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

418kWh LFP Battery Cabinet

Liquid Cooling BESS 100kW PCS

Integrated Energy Storage System

Product Description

418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS LFP Battery All-in-One BESS System

418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS (400 Vac)

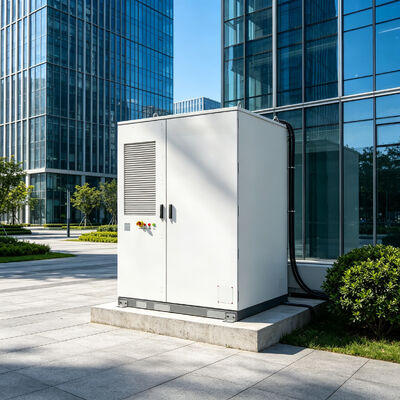

The ES-BP-1-416-418000-C-Y distributed energy storage cabinet, developed by REsource Electric Tianjin Ltd., integrates the power conversion system (PCS), LFP battery packs, battery management system (BMS), liquid cooling thermal management, power distribution and aerosol fire suppression into one compact 1650 x 2280 x 1350 mm cabinet.

Rated at 418 kWh with a 100 kW PCS on the 400 Vac side, this BESS supports peak shaving and valley filling, demand charge reduction, backup power and renewable energy time-shifting for commercial and industrial users.

Key Features

All-in-one integration of PCS, LFP battery, BMS, liquid cooling thermal management, power distribution and aerosol fire suppression
1P416S LFP configuration delivering 418 kWh rated capacity at 1331.2 Vdc nominal voltage
100 kW rated power with 400 Vac three-phase grid connection and 220 Vac auxiliary supply
Smart BMS with multi-level electrical, thermal and communication protection
Liquid cooling maintains uniform cell temperature for extended cycle life
LAN communication with MQTT protocol for EMS and remote platform integration
Factory pre-assembled and pre-commissioned for fast plug-and-play deployment

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW
Rated Output Voltage	400 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Commercial and industrial peak shaving and valley filling
Demand charge management and backup power
Renewable energy time-shifting and self-consumption
Distributed energy storage stations and microgrids

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

The cabinet is supplied under the Ohory brand. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
