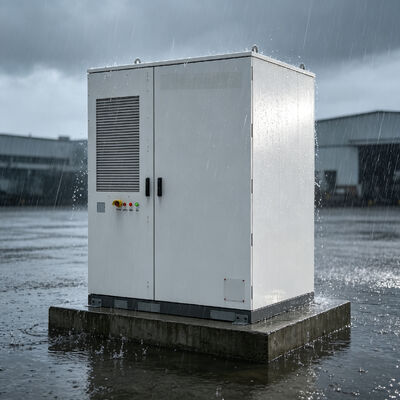

418 kWh Energy Storage Cabinet with Liquid Cooling and MQTT Protocol for Smart BESS Management

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW (400 Vac) / 200 KW (690 Vac)

Rated Output Voltage:

400 Vac / 690 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

10 Unit Parallel ESS Configuration

MQTT EMS Grid Communication

Scalable 418kWh LFP Storage System

Product Description

Parallel 418kWh Energy Storage Cabinet MQTT EMS Smart Management Liquid Cooling LFP BESS

Parallel 418kWh Energy Storage Cabinet MQTT EMS (Scalable to Multi-MWh)

For projects requiring more than a single cabinet, up to 10 ES-BP-1-416-418000-C-Y cabinets can be connected in parallel on the same AC busbar under grid-tied conditions, scaling the installation from 418 kWh to over 4 MWh of storage capacity.

Each cabinet communicates through LAN with MQTT protocol, allowing centralized EMS platforms to monitor, schedule and dispatch the entire storage station, whether deployed for peak shaving, frequency regulation or renewable integration.

Key Features

Up to 10 cabinets in parallel on one AC busbar for multi-MWh capacity
LAN communication with MQTT protocol for centralized EMS control
100 kW / 400 Vac and 200 kW / 690 Vac configurations available
Smart BMS and liquid cooling in every cabinet for reliable fleet operation
Aerosol fire suppression and IP54/IP55 protection per cabinet
Scalable modular design simplifies project staging and expansion

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW (400 Vac) / 200 kW (690 Vac)
Rated Output Voltage	400 Vac / 690 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Multi-MWh utility and C&I storage stations
Large scale peak shaving and frequency regulation plants
Renewable energy storage farms
Step-by-step expandable storage projects

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

The cabinet is supplied under the Ohory brand. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
