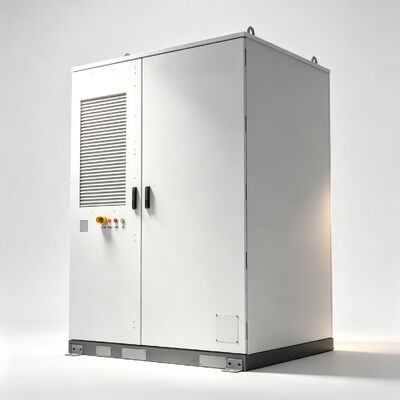

Outdoor 418kWh Energy Storage Cabinet with C4 Corrosion Protection and Liquid Cooling for Harsh Environments

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW (400 Vac) / 200 KW (690 Vac)

Rated Output Voltage:

400 Vac / 690 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

C4 Corrosion Protection Outdoor Cabinet

Wide Temperature Range LFP BESS

High Altitude Liquid Cooled Cabinet

Product Description

Outdoor 418kWh Energy Storage Cabinet C4 Corrosion Protection Liquid Cooling LFP Battery BESS

Outdoor 418kWh Energy Storage Cabinet C4 Corrosion Protection (Wide Temperature)

The outdoor 418 kWh energy storage cabinet is built for harsh deployment environments: C4 corrosion protection, an operating temperature range of -20°C to 50°C with derating above 45°C, and certified operation at altitudes up to 4000 m with derating above 2000 m.

The IP54/IP55 rated enclosure and liquid cooling system protect the LFP battery and power electronics from dust, humidity, salt and extreme temperature swings, making the cabinet suitable for coastal, desert, highland and cold climate projects.

Key Features

C4 corrosion protection rated enclosure for coastal and industrial environments
Wide operating temperature range from -20°C to 50°C
Altitude capability up to 4000 m (derating above 2000 m)
IP54 electrical compartment and IP55 battery compartment
Liquid cooling for stable performance in extreme climates
Relative humidity tolerance up to 95% non-condensing

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW (400 Vac) / 200 kW (690 Vac)
Rated Output Voltage	400 Vac / 690 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Coastal and offshore-adjacent energy storage projects
Desert solar storage with high ambient temperatures
High altitude renewable energy plants
Cold climate peak shaving and backup power

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

The cabinet is supplied under the Ohory brand. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
