418kWh Liquid Cooling Energy Storage Cabinet for Peak Shaving with LFP Battery BESS

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW

Rated Output Voltage:

400 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

Commercial Peak Shaving Battery Cabinet

100kW 400V Industrial BESS

LFP Liquid Cooling Storage Solution

Product Description

Commercial 418kWh Liquid Cooling Energy Storage Cabinet Peak Shaving LFP Battery BESS 400V

Built for commercial and industrial electricity users, the 418 kWh liquid cooling energy storage cabinet charges during off-peak periods and discharges at peak times to cut demand charges and electricity bills. The 100 kW PCS at 400 Vac connects directly to the C&I low voltage grid, while the smart BMS and liquid cooling system ensure safe, stable operation across the full -20°C to 50°C temperature range.

Key Features

Peak shaving and valley filling reduces demand charges and energy costs
100 kW PCS at 400 Vac designed for commercial low voltage grids
418 kWh LFP battery with 1331.2 Vdc nominal voltage
Smart BMS and liquid cooling for safe high cycle operation
Aerosol fire suppression and IP54/IP55 protected enclosure
Compact footprint for container or building side installation

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW
Rated Output Voltage	400 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Factory and plant demand charge reduction
Shopping malls, hospitals and commercial building peak shaving

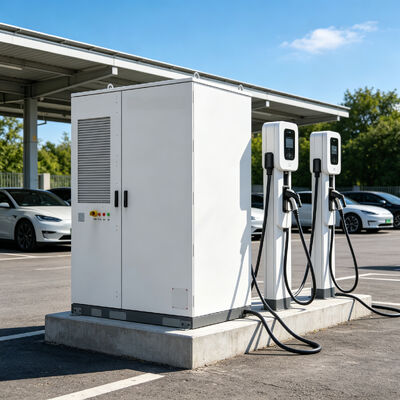

EV charging station energy buffering
Time-of-use tariff arbitrage

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

The cabinet is supplied under the Ohory brand. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
