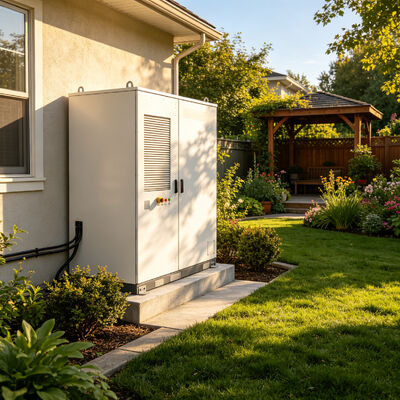

418 kWh Liquid Cooled Energy Storage Cabinet with 200 kW PCS for Grid Frequency Regulation

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

200 KW

Rated Output Voltage:

690 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

Grid Frequency Regulation ESS

200kW 690V Fast Response BESS

418kWh LFP Regulation Unit

Product Description

Grid Frequency Regulation 418kWh Liquid Cooled Energy Storage Cabinet LFP Battery 200kW 690V ESS

Product Overview

The 418 kWh liquid cooled energy storage cabinet with a 200 kW PCS at 690 Vac is engineered for grid frequency regulation, peak shaving and other ancillary services that demand fast response and high cycling capability.

The LFP battery chemistry and liquid cooling thermal management deliver consistent charge/discharge performance, while MQTT-based communication enables direct dispatch from grid or EMS controllers.

Key Features

Fast response PCS supports grid frequency regulation and peak regulation
200 kW rated power at 690 Vac for medium voltage grid integration
418 kWh LFP battery designed for high frequency cycling
Liquid cooling maintains performance during sustained high rate operation
Up to 10 cabinets parallel per busbar for MW-class regulation capacity
LAN communication with MQTT protocol for EMS and grid dispatch

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	200 kW
Rated Output Voltage	690 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Grid frequency regulation (primary and secondary reserve)
Peak regulation and load following
Renewable energy grid integration and smoothing
Utility ancillary service markets

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

The cabinet is supplied under the Ohory brand. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
