418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS for Solar BESS Applications

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW

Rated Output Voltage:

400 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

Solar Storage 418kWh BESS Cabinet

Renewable Liquid Cooling ESS

100kW PCS LFP Battery System

Product Description

Solar 418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS LFP Battery Renewable BESS

Solar 418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS (PV + Storage)

Designed for solar plus storage applications, the 418 kWh liquid cooling energy storage cabinet stores surplus PV generation during the day and releases it during evening peak hours to maximize self-consumption and renewable utilization.

With a 100 kW PCS at 400 Vac, smart BMS and MQTT communication, the cabinet works seamlessly with PV inverters and EMS platforms for both on-grid and hybrid renewable projects.

Key Features

Stores surplus solar power for evening peak release and higher self-consumption
100 kW PCS at 400 Vac with seamless renewable integration
418 kWh LFP battery with 1331.2 Vdc nominal voltage
Smart BMS with complete electrical and thermal protection
Liquid cooling for stable operation in high solar irradiation regions
LAN communication with MQTT protocol for EMS control

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW
Rated Output Voltage	400 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Commercial and industrial PV self-consumption
Solar power plant time-shifting and smoothing
Hybrid renewable energy microgrids
Farm and remote site solar storage

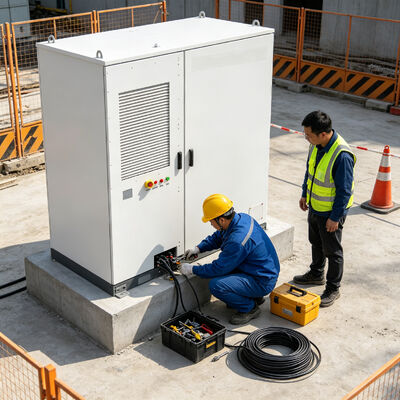

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

The cabinet is supplied under the Ohory brand. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
