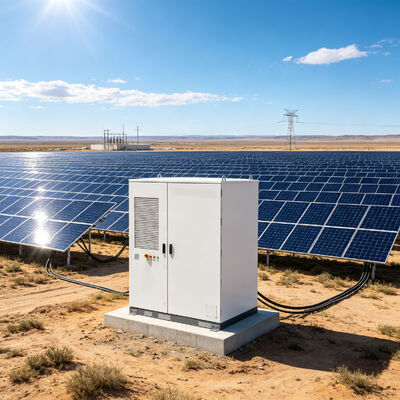

Liquid Cooled 418kWh LFP Energy Storage Cabinet with 1P416S Configuration and Thermal Management

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW (400 Vac) / 200 KW (690 Vac)

Rated Output Voltage:

400 Vac / 690 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

Liquid Cooled 1P416S LFP Battery

Smart BMS Thermal Management

Long Cycle Life LFP Modules

Product Description

Liquid Cooled 418kWh LFP Energy Storage Cabinet 1P416S BMS Thermal Management ESS

Liquid Cooled 418 kWh LFP Energy Storage Cabinet 1P416S (Thermal Management)

This liquid cooled 418 kWh LFP energy storage cabinet features the 1P416S battery configuration, formed by 52.25 kWh battery modules, providing 1331.2 Vdc nominal voltage and a wide 1164~1497 Vdc operating window.

Active liquid cooling keeps cell temperature differences small even under continuous high-rate charge and discharge, protecting cycle life and maximizing usable energy over the system lifetime.

Key Features

1P416S LFP configuration with 52.25 kWh pluggable battery modules
Active liquid cooling for uniform cell temperature and long cycle life
1331.2 Vdc nominal voltage with 1164~1497 Vdc operating range
Smart BMS monitors electrical and thermal parameters at module, cluster and array level
Rated charge/discharge current of 75 Adc per system
Aerosol fire suppression as standard safety protection

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW (400 Vac) / 200 kW (690 Vac)
Rated Output Voltage	400 Vac / 690 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

High cycling frequency energy storage applications
Peak shaving and frequency regulation
Renewable energy storage with daily charge/discharge cycles
Long lifetime industrial storage projects

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

The cabinet is supplied under the Ohory brand. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
