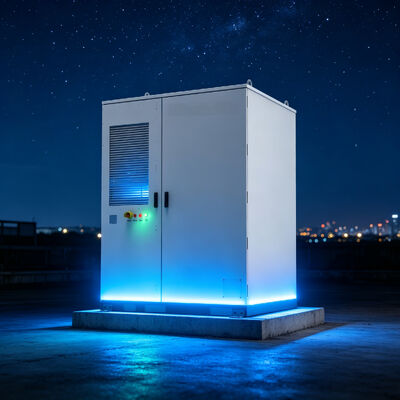

418kWh Liquid Cooling Energy Storage Cabinet with 100kW PCS for Off-Grid BESS System

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW

Rated Output Voltage:

400 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

Microgrid Off-Grid BESS Cabinet

Island Mode 100kW PCS

418kWh LFP Battery Storage

Product Description

Microgrid 418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS LFP Battery Off-Grid BESS System

Microgrid 418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS (Off-Grid)

The 418 kWh liquid cooling energy storage cabinet with a 100 kW PCS at 400 Vac is designed for microgrid and off-grid island applications, delivering stable power where the utility grid is weak, unreliable or absent.

Combined with renewable generation, the cabinet stores excess energy during high-output periods and discharges it to balance supply and demand, keeping microgrid frequency and voltage within acceptable limits day and night.

Key Features

Supports off-grid and grid-tied microgrid operating modes
100 kW PCS at 400 Vac for island and remote power systems
418 kWh LFP battery with 1P416S configuration and 1331.2 Vdc nominal voltage
Liquid cooling maintains output stability in remote harsh climates
Smart BMS with multi-level protection for unattended operation
LAN communication with MQTT protocol for microgrid EMS dispatch

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW
Rated Output Voltage	400 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Island and remote off-grid microgrids
Village electrification and rural power supply
Renewable hybrid microgrid projects
Critical remote facilities requiring stable power

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

Ohory is the brand for this 418kWh liquid cooling energy storage cabinet. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
