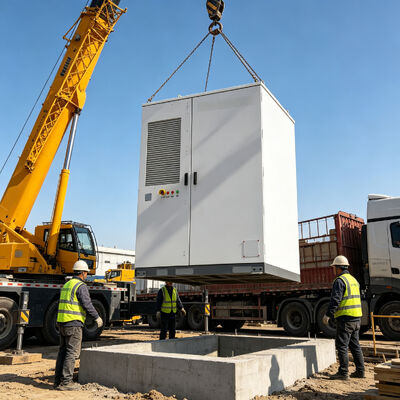

418kWh Liquid Cooling Energy Storage Cabinet with 200kW PCS for EV Charging Stations

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

200 KW

Rated Output Voltage:

690 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

EV Charging Buffer Storage

200kW 690V PCS BESS

418kWh LFP Battery Cabinet

Product Description

EV Charging Station 418kWh Liquid Cooling Energy Storage Cabinet 200kW PCS LFP Battery Buffer BESS

EV Charging Station 418kWh Liquid Cooling Energy Storage Cabinet 200kW PCS (Buffer)

The 418 kWh liquid cooling energy storage cabinet with a 200 kW PCS at 690 Vac serves as a buffer for EV fast charging stations, smoothing the high power demand spikes of DC chargers and reducing stress on the local grid connection. By storing energy during low-demand periods and discharging it during charging peaks, the cabinet lowers demand charges, avoids costly grid upgrades and enables more chargers to operate on an existing connection.

Key Features

Buffers high power spikes of DC fast charging stations
200 kW PCS at 690 Vac reduces grid connection and demand charges
418 kWh LFP battery supports daily high rate charge and discharge
Enables more EV chargers on an existing grid connection
Liquid cooling keeps temperature uniform during repeated fast cycles
LAN communication with MQTT protocol for charging network EMS

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	200 kW
Rated Output Voltage	690 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Highway and fleet EV fast charging stations
Urban charging hubs with limited grid capacity
Fleet depot and electric bus charging infrastructure
Charging stations combined with solar generation

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

Ohory is the brand for this 418kWh liquid cooling energy storage cabinet. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
