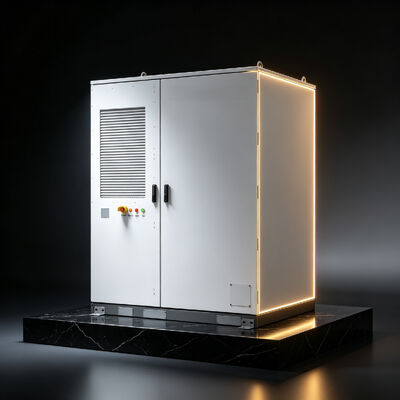

418kWh Liquid Cooling Energy Storage Cabinet with 100kW PCS for Data Center Backup

Brand Name:	Ohory
Model Number:	ES-BP-1-416-418000-C-Y
MOQ:	1 Unit
Price:	USD 48000-58000 / Unit
Packaging Details:	Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Tianjin, China

Certification:

CE, IEC 62619, UN38.3, ISO 9001:2015

Cell Type:

LFP (LiFePO4)

Battery Module Rated Capacity:

52.25 KWh

System Configuration:

1P416S

Battery Rated Voltage:

1331.2 Vdc

Battery Voltage Range:

1164~1497 Vdc

System Rated Capacity:

418 KWh

Rated Charge/Discharge Current:

75 Adc

Rated Power:

100 KW

Rated Output Voltage:

400 Vac (3P+PE)

Rated Grid Frequency:

50 Hz

Cooling Method:

Liquid Cooling

Fire Fighting System:

Aerosol

IP Rating:

Electrical Compartment IP54, Battery Compartment IP55

Operating Temperature:

-20~50 Deg C (derating Above 45 Deg C)

Relative Humidity:

<=95%, Non-condensing

Max Operating Altitude:

4000 M (derating Above 2000 M)

Communication Interface:

Communication Protocol:

Corrosion Protection Level:

Weight:

4040 +/- 20 Kg

Dimensions (W X H X D):

1650 X 2280 X 1350 Mm

Max Parallel Units Per Busbar:

Supply Ability:

50 Units per Month

Highlight:

Data Center UPS BESS

100kW PCS Backup Power

418kWh LFP Battery Cabinet

Product Description

Data Center 418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS LFP Battery Backup UPS System

Product Overview

The 418 kWh liquid cooling energy storage cabinet with a 100 kW PCS at 400 Vac provides clean, reliable backup power for data centers and mission critical facilities, bridging outages until generators start and supporting peak load management.

With LFP battery chemistry, multi-level BMS protection and aerosol fire suppression, the cabinet meets the strict safety and reliability expectations of data center operators while reducing diesel dependence.

Key Features

Reliable backup power for data centers and mission critical facilities
100 kW PCS at 400 Vac with fast switchover support
418 kWh LFP battery with multi-level BMS protection
Aerosol fire suppression for high safety standards
Reduces diesel generator runtime and carbon emissions
LAN communication with MQTT protocol for DCIM and EMS integration

Technical Specifications

Cell Type	LFP (LiFePO4)
Battery Module Rated Capacity	52.25 kWh
System Configuration	1P416S
Battery Rated Voltage	1331.2 Vdc
Battery Voltage Range	1164~1497 Vdc
System Rated Capacity	418 kWh
Rated Charge/Discharge Current	75 Adc
Rated Power	100 kW
Rated Output Voltage	400 Vac (3P+PE)
Rated Grid Frequency	50 Hz
Connection Method	AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method	Liquid Cooling
Fire Fighting System	Aerosol
IP Rating	Electrical compartment IP54, battery compartment IP55
Operating Temperature	-20~50 °C (derating above 45 °C)
Relative Humidity	≤95%, non-condensing
Max Operating Altitude	4000 m (derating required above 2000 m)
Communication Interface	LAN
Communication Protocol	MQTT
Corrosion Protection Level	C4
Weight	4040 ± 20 kg
Dimensions (W x H x D)	1650 x 2280 x 1350 mm
Max Parallel Units per Busbar	10

Typical Applications

Data center and IDC backup power
Mission critical facility power continuity
Peak load management and demand response
Telecom and IT infrastructure resilience

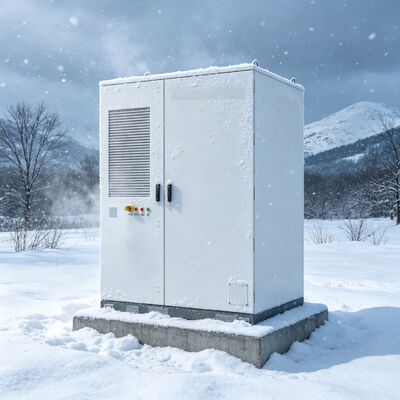

The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.

Ohory is the brand for this 418kWh liquid cooling energy storage cabinet. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
