Copper Clad Aluminum Conductor Busway System 630A-3200A Weight Saving for AI Data Center Power Runs

Brand Name:	ohory
Model Number:	OH-DCB-CCA
MOQ:	10 Meters
Price:	USD 70-190 / Meter
Packaging Details:	Plywood case with conductor end caps to protect the copper skin during transport
Payment Terms:	T/T, L/C at sight

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001 / UL 857 / IEC 61439 / CNAS

Rated Current:

630A - 3200A

Conductor:

Copper Clad Aluminum, 15 Percent Copper Volume Fraction, Bonded Billet

Weight Reduction:

Approximately 40 Percent Lighter Than Solid Copper Conductors

Joint Surface:

Copper Skin At Joint Faces, Silver Plated

Contact Resistance:

Within 5 Percent Of Equivalent Solid Copper Busway

Rated Insulation Voltage:

1000V AC

Rated Working Voltage:

690V AC

Temperature Rise:

Less Than Or Equal To 35K At Rated Current

Bending:

Factory Bent Sections, Field Bending Not Permitted

Protection Degree:

IP54 Indoor

Test Standard:

IEC 61439-6 / UL 857

Supply Ability:

20000 Meters per Month

Highlight:

Copper Clad Aluminum Busway System

630A-3200A Busway for Data Center

Weight Saving Busway Power Runs

Product Description

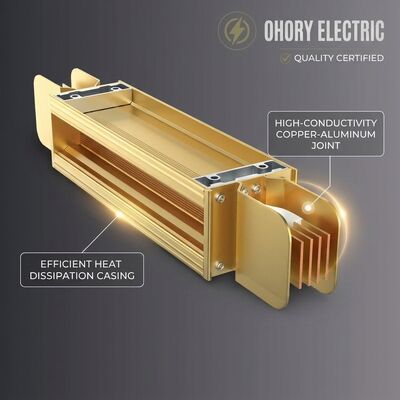

Copper Clad Aluminum Conductor Busway System

The OH-DCB-CCA series replaces solid copper with a copper clad aluminum conductor bonded at the billet stage. Conductor weight drops about 40 percent, which reduces hanger and shaft steel loads, while joint faces remain copper and silver plated so contact resistance tracks solid copper designs within 5 percent.

Key Features

Bonded Copper Clad Billet: Copper and aluminum are bonded as a billet before drawing so the interface cannot separate in service
40 Percent Lighter: Conductor weight drops about 40 percent, easing hanger loads and riser shaft steelwork
Copper Joint Faces: Joint surfaces remain copper and silver plated, so contact resistance stays close to solid copper designs
Lower Conductor Cost: Material cost falls while current carrying geometry and enclosure stay unchanged
Same Enclosure Platform: Uses the standard enclosure and tap off range, keeping spares and tooling common

Applications

Long horizontal runs where hanger loads govern structure
High rise risers with limited shaft steel capacity
Cost sensitive AI data center phases with fixed current ratings
Overseas projects where copper price volatility affects the budget

Technical Specifications

Rated Current	630A - 3200A
Conductor	Copper clad aluminum, 15 percent copper volume fraction, bonded billet
Weight Reduction	Approximately 40 percent lighter than solid copper conductors
Joint Surface	Copper skin at joint faces, silver plated
Contact Resistance	Within 5 percent of equivalent solid copper busway
Rated Insulation Voltage	1000V AC
Rated Working Voltage	690V AC
Temperature Rise	Less than or equal to 35K at rated current
Bending	Factory bent sections, field bending not permitted
Protection Degree	IP54 indoor
Test Standard	IEC 61439-6 / UL 857

Compliance and Testing

Bond integrity is verified by sectioning and bend testing on production samples. Temperature rise, short circuit withstand and contact resistance tests are performed on the finished busway, not on raw conductor samples.

Ordering Information

State current rating, run length and elevation, joint access requirement and whether the project requires a copper only spec deviation approval.
