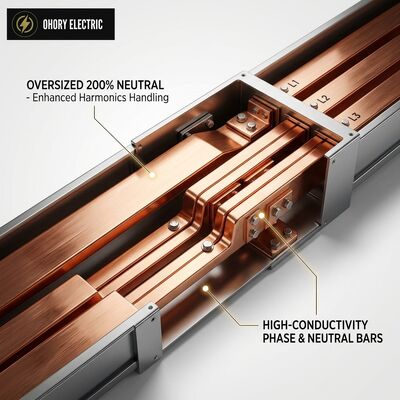

200% Neutral Conductor Busway System 800A-4000A Harmonic Rich UPS Output Distribution for AI Data Centers

Brand Name:	ohory
Model Number:	OH-DCB-N200
MOQ:	10 Meters
Price:	USD 110-300 / Meter
Packaging Details:	Plywood case with neutral bar protection caps and joint kits packed separately
Payment Terms:	T/T, L/C at sight

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001 / UL 857 / IEC 61439 / CNAS

Rated Current:

800A - 4000A Phase, 1600A - 8000A Neutral

Neutral Rating:

200 Percent Of Phase Cross Section, Full Length

Harmonic Withstand:

Designed For Triplen Harmonic Content Up To 100 Percent

Rated Insulation Voltage:

1000V AC

Rated Working Voltage:

400 / 690V AC

Rated Frequency:

50 / 60 Hz

Conductor Material:

Electrolytic Copper, Tin Plated

Neutral Temperature Rise:

Less Than Or Equal To 30K At Full Harmonic Load

Neutral Terminal:

Double Lug Neutral Bar In Every Tap Off Unit

Protection Degree:

IP54 Indoor, IP66 Option

Test Standard:

IEC 61439-6 / UL 857

Supply Ability:

15000 Meters per Month

Highlight:

200% Neutral Busway System

800A-4000A Busway UPS Distribution

Harmonic-Rich Busway for AI Data Centers

Product Description

200 Percent Neutral Busway System for Harmonic Rich UPS Output

The OH-DCB-N200 series addresses a failure mode that standard busway ignores. Modern servers, GPUs and UPS inverters draw non linear current, and triplen harmonics add in the neutral instead of cancelling. With a neutral conductor rated at 200 percent of the phase section and a double lug neutral bar in every tap off, the run keeps neutral temperature rise within 30K at full harmonic load.

Key Features

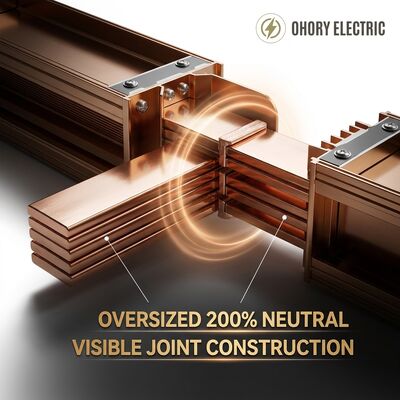

Fully Rated 200% Neutral: Neutral sized at twice the phase section to carry triplen harmonic current without derating
Harmonic Load Verified: Type tested with 100 percent triplen harmonic content on the neutral conductor
Double Lug Neutral Bar: Every tap off unit accepts two neutral conductors for parallel server branch circuits
Balanced Temperature Rise: Neutral kept at or below 30K rise to protect insulation under continuous harmonic duty
UPS Output Ready: Suited to double conversion UPS output where load power factor is far from unity

Applications

UPS output distribution to server rack rows
AI data center halls with high density switch mode power supplies
Facilities with more than 40 percent non linear load content
Retrofit of circuits where neutral overload has caused cable failures

Technical Specifications

Rated Current	800A - 4000A phase, 1600A - 8000A neutral
Neutral Rating	200 percent of phase cross section, full length
Harmonic Withstand	Designed for triplen harmonic content up to 100 percent
Rated Insulation Voltage	1000V AC
Rated Working Voltage	400 / 690V AC
Rated Frequency	50 / 60 Hz
Conductor Material	Electrolytic copper, tin plated
Neutral Temperature Rise	Less than or equal to 30K at full harmonic load
Neutral Terminal	Double lug neutral bar in every tap off unit
Protection Degree	IP54 indoor, IP66 option
Test Standard	IEC 61439-6 / UL 857

Compliance and Testing

Type tests include neutral conductor temperature rise under 100 percent triplen harmonic loading, short circuit withstand and dielectric verification. Harmonic loading reports are issued with each project submittal.

Ordering Information

State phase current, harmonic spectrum from the load study, neutral rating required, tap off quantity and protection degree.
