Dual Path A/B Redundant Busway System 1250A-4000A Physical Isolation for 2N Data Center Power Distribution

Brand Name:	ohory
Model Number:	OH-DCB-2N
MOQ:	20 Meters
Price:	USD 105-290 / Meter
Packaging Details:	A and B paths crated separately with colour coded labels and paired joint kits
Payment Terms:	T/T, L/C at sight

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001 / UL 857 / IEC 61439 / CNAS

Rated Current Per Path:

1250A - 4000A

Configuration:

A And B Paths, Full 2N Redundancy

Path Separation:

Minimum 300mm Physical Separation, No Shared Hangers

Identification:

Red And Blue Phase Markers Plus Path Labels At Every Joint

Isolation Verification:

Continuity And Insulation Test Per Path, Separate Reports

Rated Insulation Voltage:

1000V AC

Rated Working Voltage:

690V AC

Tap Off:

Dual Input Rack Tap Off With Mechanical Interlock Option

Protection Degree:

IP54 Indoor

Test Standard:

IEC 61439-6 / UL 857

Supply Ability:

16000 Meters per Month

Highlight:

Dual Path A/B Busway System

1250A-4000A Redundant Busway

2N Data Center Power Busway

Product Description

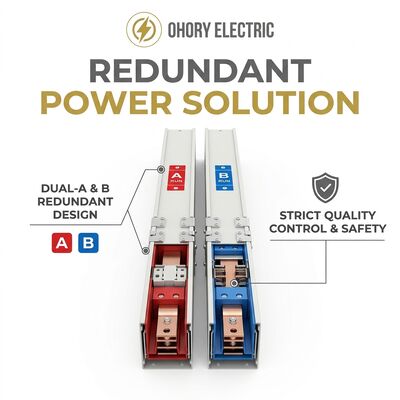

Dual Path A/B Redundant Busway System for 2N Distribution

The OH-DCB-2N series supplies A and B power paths as a matched pair. Identical impedance keeps load sharing predictable, and physical separation with independent supports is maintained through every routing change so a fault or maintenance event on one path cannot affect the other. Separate test records for each path support concurrent maintainability audits.

Key Features

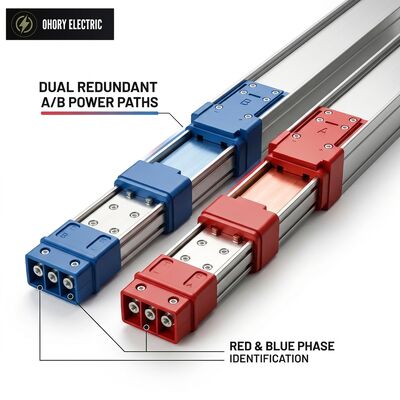

Matched A/B Paths: Both paths produced as a pair from the same batch for identical impedance and load sharing
Verified Physical Isolation: No shared hangers or supports, minimum 300mm separation maintained through every routing change
Dual Input Rack Tap Off: Mechanical interlock option prevents paralleling of A and B sources at the rack
Separate Test Reports: Continuity and insulation records issued per path for concurrent maintainability audits

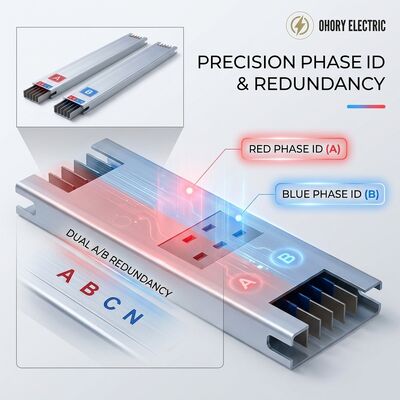

Colour Coded Identification: Path markers at every joint reduce misconnection risk during fit out

Applications

Tier III and Tier IV data centers with 2N distribution
AI data center rack rows fed from separate UPS systems
Facilities requiring concurrent maintainability certification
Colocation halls with SLA backed power path availability

Technical Specifications

Rated Current per Path	1250A - 4000A
Configuration	A and B paths, full 2N redundancy
Path Separation	Minimum 300mm physical separation, no shared hangers
Identification	Red and blue phase markers plus path labels at every joint
Isolation Verification	Continuity and insulation test per path, separate reports
Rated Insulation Voltage	1000V AC
Rated Working Voltage	690V AC
Tap Off	Dual input rack tap off with mechanical interlock option
Protection Degree	IP54 indoor
Test Standard	IEC 61439-6 / UL 857

Compliance and Testing

Each path is insulation tested and continuity verified with its own report. Isolation distance is surveyed and documented at joint positions, and dual input tap off interlocks are function tested before shipment.

Ordering Information

Provide per path current, redundancy tier, separation constraints from the layout, tap off quantity and interlock requirement.
