Rack Level Metered Tap Off Unit 16A-63A Per Outlet kWh Metering for AI Data Center Busway

Brand Name:	ohory
Model Number:	OH-DCB-MTO
MOQ:	20 Pieces
Price:	USD 85-210 / Piece
Packaging Details:	Individual carton with calibration certificate, register map card and connector protection cap
Payment Terms:	T/T, L/C at sight, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001 / IEC 61439-6 / IEC 62053-21 / CNAS

Rated Current:

16A / 32A / 63A Per Outlet

Outlets Per Unit:

3, 6 Or 12 Outlet Configurations

Metering Accuracy:

Class 1 Per Outlet, KWh And Instantaneous KW

Metering Output:

Modbus RTU RS485, SNMP Gateway Option

Display:

Local LCD Per Outlet, Cumulative And Resettable Registers

Voltage:

220 / 380V AC, Single And Three Phase Outlets

Connection:

Tool Free Plug In To Busway, No Interruption To Adjacent Units

Enclosure:

Flame Retardant PC And Steel, IP20

Metering Standard:

IEC 62053-21 Class 1

Test Standard:

IEC 61439-6 / IEC 62053-21

Supply Ability:

5000 Pieces per Month

Highlight:

Metered Tap Off Unit 16A-63A

Per Outlet kWh Metering Tap Off

Busway Tap Off Unit for Data Center

Product Description

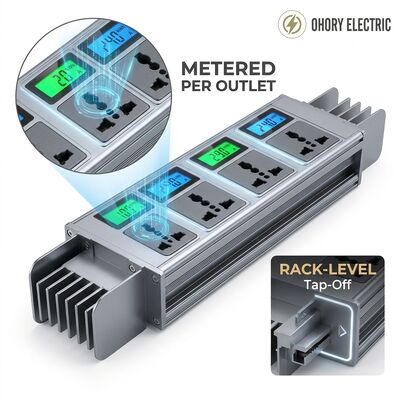

Rack Level Metered Tap Off Unit with Per Outlet kWh Metering

The OH-DCB-MTO series moves metering to the point of use. Every outlet carries a class 1 kWh meter with a local display and Modbus output, so rack level billing and power trend data arrive without a separate meter panel or current transformers. The tool free plug in connection lets units be added during live operation.

Key Features

Per Outlet kWh Metering: Class 1 accuracy on every outlet so rack level billing needs no separate meter panel
Tool Free Plug In: Unit engages the busway without tools and without interrupting adjacent tap offs
Modbus RTU Output: Register map documented for BMS and DCIM integration out of the box
Local LCD Registers: Cumulative and resettable registers readable at the rack during fit out and audit
Mixed Outlet Configurations: C13, C19 and three phase outlets combined in one unit footprint

Applications

Colocation halls billing power per rack
AI data center GPU racks with per tenant power tracking
Facilities integrating rack power data into DCIM or BMS
Retrofit metering where panel level meters are not available

Technical Specifications

Rated Current	16A / 32A / 63A per outlet
Outlets per Unit	3, 6 or 12 outlet configurations
Metering Accuracy	Class 1 per outlet, kWh and instantaneous kW
Metering Output	Modbus RTU RS485, SNMP gateway option
Display	Local LCD per outlet, cumulative and resettable registers
Voltage	220 / 380V AC, single and three phase outlets
Connection	Tool free plug in to busway, no interruption to adjacent units
Enclosure	Flame retardant PC and steel, IP20
Metering Standard	IEC 62053-21 class 1
Test Standard	IEC 61439-6 / IEC 62053-21

Compliance and Testing

Metering accuracy is verified against IEC 62053-21 class 1 reference equipment, and each unit receives a factory calibration certificate with a documented Modbus register map.

Ordering Information

Specify outlet configuration, current per outlet, single or three phase arrangement, communication protocol and label wording for tenant identification.
