EMC Shielded Low Emission Busway System 800A-4000A for AI Data Center Sensitive Load Distribution

Brand Name:	ohory
Model Number:	OH-DCB-EMC
MOQ:	10 Meters
Price:	USD 115-300 / Meter
Packaging Details:	Plywood case with screen assemblies protected, bonding link kits and torque specification included
Payment Terms:	T/T, L/C at sight

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001 / UL 857 / IEC 61439 / CNAS

Rated Current:

800A - 4000A

Shielding:

Continuous Galvanized Steel Screen, 360 Degree Joint Bonding

Radiated Emission:

Verified Per CISPR 11 Group 1 Class A Limits At 3m

Transfer Impedance:

Measured Per IEC 62153-4-3 At Joint Assemblies

Joint Bonding:

Braided Copper Link With 6Nm Torque Specification

Rated Insulation Voltage:

1000V AC

Rated Working Voltage:

690V AC

Rated Frequency:

50 / 60 Hz

Enclosure:

Double Wall Steel With Conductive Gasket At Covers

Protection Degree:

IP54 Indoor

Test Standard:

IEC 61439-6 / CISPR 11 / IEC 62153-4-3

Supply Ability:

12000 Meters per Month

Highlight:

EMC shielded busway system 800A-4000A

low emission busway for AI data center

sensitive load distribution busway system

Product Description

EMC Shielded Low Emission Busway System for Sensitive Loads

The OH-DCB-EMC series controls radiated emission at the source. A continuous galvanized screen with 360 degree bonded joints keeps the enclosure from acting as the only barrier, and transfer impedance is measured at joint assemblies so EMC documentation rests on test data rather than geometry alone.

Key Features

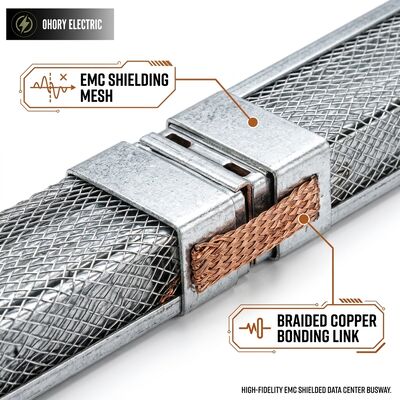

Continuous Shield Screen: Galvanized steel screen runs the full length so the enclosure is not the only emission barrier
360 Degree Joint Bonding: Braided copper links bond the screen around the full joint circumference at controlled torque
Measured Emission Data: Radiated emission verified to CISPR 11 group 1 class A at 3m with reports per project
Transfer Impedance Testing: Joint assemblies measured to IEC 62153-4-3 to support EMC documentation
Conductive Cover Gaskets: Double wall steel with gaskets keeps cover seams from becoming leakage paths

Applications

Halls housing sensitive instrumentation next to high current runs
Facilities with network equipment close to distribution busway
Hospitals and laboratories within a data center campus
Projects with an EMC compliance report requirement

Technical Specifications

Rated Current	800A - 4000A
Shielding	Continuous galvanized steel screen, 360 degree joint bonding
Radiated Emission	Verified per CISPR 11 group 1 class A limits at 3m
Transfer Impedance	Measured per IEC 62153-4-3 at joint assemblies
Joint Bonding	Braided copper link with 6Nm torque specification
Rated Insulation Voltage	1000V AC
Rated Working Voltage	690V AC
Rated Frequency	50 / 60 Hz
Enclosure	Double wall steel with conductive gasket at covers
Protection Degree	IP54 indoor
Test Standard	IEC 61439-6 / CISPR 11 / IEC 62153-4-3

Compliance and Testing

Radiated emission is verified to CISPR 11 group 1 class A at 3m, and joint transfer impedance is measured to IEC 62153-4-3. Reports are supplied for the project EMC file.

Ordering Information

Provide current rating, distance to sensitive equipment, emission limit from the EMC study and joint bonding access requirement.
