100kA Short Circuit Withstand Busway System 1250A-6300A Integral Earth for AI Data Center Power Backbone

Brand Name:	ohory
Model Number:	OH-DCB-ICW100
MOQ:	10 Meters
Price:	USD 95-260 / Meter
Packaging Details:	Seaworthy plywood case with moisture barrier film, joint kits and end covers packed separately
Payment Terms:	T/T, L/C at sight, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001 / UL 857 / IEC 61439 / CNAS / CMA

Rated Current Range:

1250A - 6300A

Conditional Short-Circuit Withstand (Icw):

100kA / 1s

Peak Withstand Current (Ipk):

220kA

Rated Insulation Voltage:

1000V AC

Rated Working Voltage:

690V AC

Rated Frequency:

50 / 60 Hz

Phase Conductor:

Electrolytic Copper 99.95 Percent, Silver Plated Joints

Integral Earth Conductor:

50 Percent Of Phase Cross Section, Full Length Continuity

Conductor Insulation:

Epoxy Powder Coated, Class F 155 C

Temperature Rise:

Less Than Or Equal To 30K At Rated Current

Dielectric Withstand:

3.5kV 1min Power Frequency

Protection Degree:

IP54 Indoor, IP68 Option

Test Standard:

IEC 61439-6 / UL 857 / GB 7251.6

Supply Ability:

20000 Meters per Month

Highlight:

100kA busway system

1250A-6300A busway with integral earth

AI data center power backbone

Product Description

High Fault Current Withstand Busway System for AI Data Center Power Backbones

The OH-DCB-ICW100 series is built for AI data centers where available fault current at the main distribution board exceeds the withstand rating of conventional busway. A verified 100kA conditional short-circuit withstand and a 220kA peak withstand let the run hold selectivity with upstream breakers without oversizing the power train, while the integral earth conductor keeps fault return paths continuous through every joint.

Key Features

100kA Icw Withstand: Type tested fault containment at the highest data center fault levels

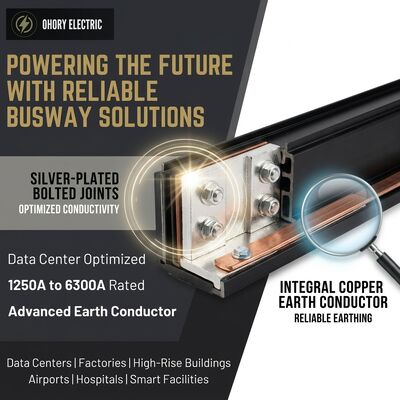

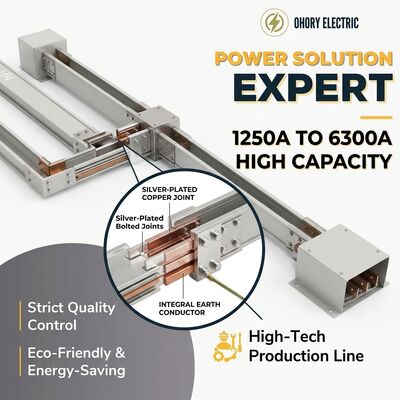

Integral Earth Conductor: Full length earth at 50 percent of phase removes reliance on conduit return paths
Selective Coordination Friendly: Low impedance and controlled temperature rise avoid nuisance tripping upstream

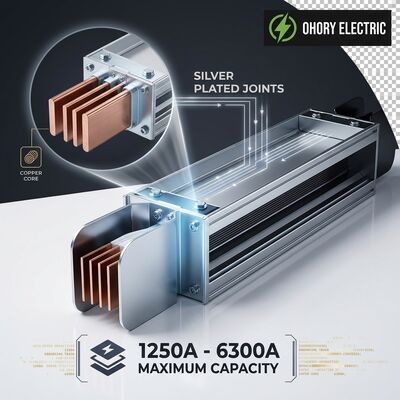

Silver Plated Bolted Joints: Single bolt torque controlled joints hold stable contact resistance after thermal cycling
30K Temperature Rise: Low loss conductor design limits rise to 30K and cuts white space cooling load
Factory Segmented Delivery: Every section is routine tested, labelled and shipped with a joint kit and torque record

Applications

AI and GPU cluster halls with high density rack rows
Main backbone from transformer LV side to floor panel boards
Colocation sites with high available fault current at the utility entrance
HPC and edge facilities requiring verifiable short circuit coordination studies

Technical Specifications

Rated Current Range	1250A - 6300A
Conditional Short-Circuit Withstand (Icw)	100kA / 1s
Peak Withstand Current (Ipk)	220kA
Rated Insulation Voltage	1000V AC
Rated Working Voltage	690V AC
Rated Frequency	50 / 60 Hz
Phase Conductor	Electrolytic copper 99.95 percent, silver plated joints
Integral Earth Conductor	50 percent of phase cross section, full length continuity
Conductor Insulation	Epoxy powder coated, Class F 155 C
Temperature Rise	Less than or equal to 30K at rated current
Dielectric Withstand	3.5kV 1min power frequency
Protection Degree	IP54 indoor, IP68 option
Test Standard	IEC 61439-6 / UL 857 / GB 7251.6

Compliance and Testing

Each production batch undergoes power frequency dielectric tests, insulation resistance measurement and contact resistance verification. Type test reports covering short circuit withstand, temperature rise and fire performance are available for consultant submittals.

Ordering Information

Please specify rated current, run length, number of tap off positions, protection degree, earth conductor requirement and the fault level from your coordination study.
